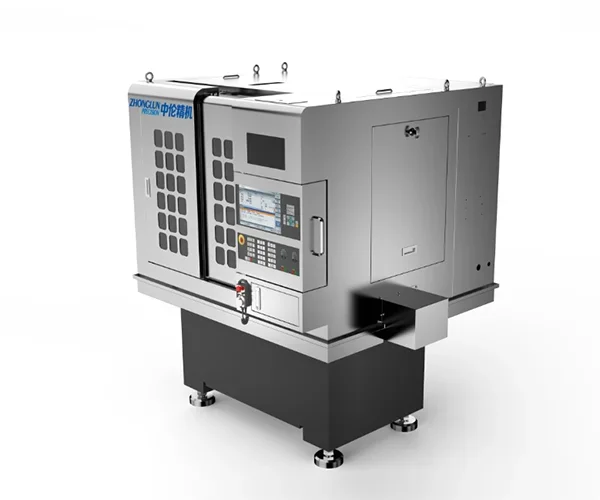

Troubleshooting and Maintenance of CNC Inner Race Groove Grinder

The CNC inner race groove grinder is a crucial piece of equipment in various industries, especially in the manufacturing of precision components. However, like any complex machinery, it is prone to certain faults that require prompt diagnosis and elimination.

One common fault is inaccurate grinding

This could be due to issues with the CNC programming, incorrect settings of the grinding parameters such as depth, speed, or feed rate. To diagnose this, operators need to carefully review the programming code and ensure all settings are correct. They can also perform test runs with standard samples to identify and correct any deviations.

Another possible problem is excessive vibration during operation

This might be caused by unbalanced components, worn-out bearings, or improper alignment. Inspecting and balancing the machine's components, replacing worn bearings, and realigning the grinder can help address this issue.

Mechanical malfunctions such as broken belts or gears can also occur

Regular inspection of these parts and timely replacement can prevent such breakdowns. In case of a sudden stoppage due to a mechanical fault, a detailed inspection of the drive system and associated components is necessary to identify the faulty part and replace it.

Electrical faults can present challenges as well. Faulty sensors, circuit breakers, or wiring issues might lead to erratic behavior or complete failure of the grinder. Using proper electrical testing equipment and troubleshooting techniques, the source of the electrical problem can be located and rectified.

Problems with the coolant system can impact the grinding process

Clogged filters or leaks in the coolant lines can reduce the cooling efficiency and potentially damage the workpiece or the grinder itself. Regular maintenance of the coolant system, including cleaning the filters and checking for leaks, is essential.

Operator errors can also contribute to faults

Lack of proper training or inattentiveness can lead to incorrect operations. Therefore, providing comprehensive training to operators and ensuring they follow proper procedures is crucial for the smooth operation of the CNC inner race groove grinder.

To prevent these faults from occurring frequently, a preventive maintenance program is highly recommended. This includes regular cleaning, lubrication, and inspection of all components. Keeping the grinder in a clean and dry environment also helps extend its lifespan.
