Precision Machining of Bearing Inner Rings: Ensuring Dimensional Concentration, Groove Shape, and Curvature for High-Precision Applications
In the realm of precision engineering, the bore grinding machine plays a pivotal role in achieving the exacting standards required by motor bearings and high-precision bearings. The discussion here centers on the critical aspects of dimensional concentration, groove shape, and curvature that are essential for the performance and longevity of these bearings.
Dimensional Concentration:

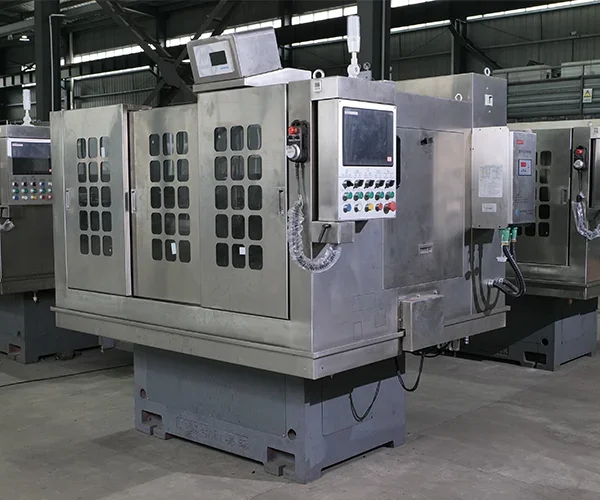

The bore grinding machine, specifically the 3MK203G model, is designed to handle a concentrated range of product sizes, which is crucial for maintaining uniformity and consistency across batches. This dimensional concentration ensures that each bearing inner ring produced is within tight tolerances, reducing variability and enhancing the predictability of performance.
Groove Shape:

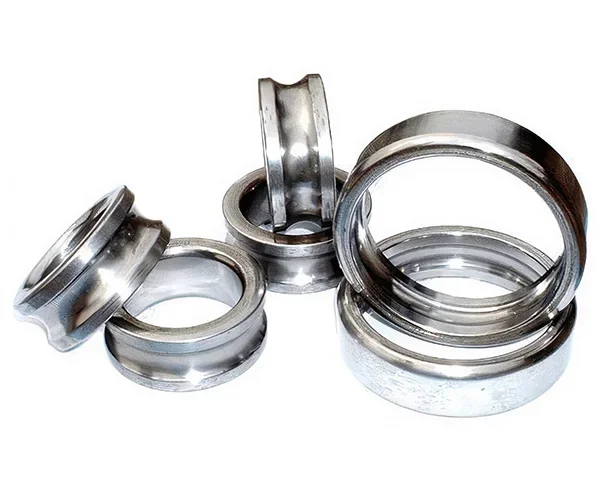

The groove shape of the bearing inner rings is another critical factor that the bore grinding machine addresses. The machine is equipped with an adjustable control system resolution of 0.1μm, which allows for the creation of perfect groove shapes. This precision is vital for the load distribution and smooth operation of the bearings, ensuring that they can withstand the stresses of high-speed rotation and heavy loads.
Roundness and Curvature:
The roundness and curvature of the bearing inner rings are also meticulously crafted by the bore grinding machine. The machine can achieve roundness within a range of 2 to 15 waves, with a tolerance of ≤0.0005 mm. This level of precision is essential for reducing friction and ensuring the smooth rotation of the bearings, which is particularly important in applications where minimal wear and tear are desired.
Meeting Precision Requirements:
To meet the precision requirements of P5/P4 bearing rings, the bore grinding machine is equipped with a diamond disc rotary dressing wheel. This feature allows for the perfect groove curvature and shape, which are critical for the accuracy and performance of the bearings. The ability to achieve such high levels of precision is what sets this machine apart in the industry, making it a preferred choice for manufacturers of motor bearings and high-precision bearings.
Sino Zhonglun Tech Group Co., Ltd. is a manufacturer of bore grinding machine, the bore grinding machine's focus on dimensional concentration, groove shape, and curvature is paramount to meeting the stringent precision requirements of motor and high-precision bearings. By ensuring these critical aspects are addressed with utmost precision, the machine contributes to the reliability and efficiency of the bearings in various high-performance applications.
