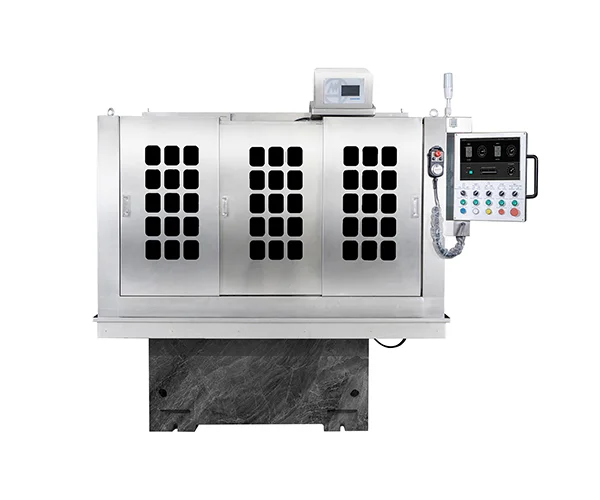

Customizable 3MK203G CNC Automatic Inner Diameter /Bore Grinder for Bearing Inner Ring
Abrasives: diamond wheel
Controlling Mode: CNC
Processing Mode: fully automatic
Precision: high precision
Certification: GS, CE, ISO 9001
Customisation: upon request
Place of Origin: Wuxi, China
Machining Accuracy Grade: P4/P5
External Dimensions: 1900mm*1350mm*1880mm
MOQ: 1 set
DM: 3 months
Packaging: three-ply board
3MK203G Machining accuracy
NO. | Item | Parameters |
1 | Residual amount (including deformation error)(mm) | 0.1～0.18 （Direction of diameter） |
2 | Processing Efficiency (one time grinding) | 8～10 Seconds/piece |
3 | Deviation（ mm） | ≤0.005 |
4 | Ellipticity（2-15waves）mm | ≤0.002 |
5 | Conical Degree (mm) | ≤0.002 |
6 | Verticality(mm) | ≤0.003 |
7 | Wall thickness difference(mm) | ≤0.0025 |
8 | Roundness（2～15waves） | ≤0.0005 |
9 | Roughness(mm) | ≤0.32 |
10 | Grinding wheel dressing intervals (pieces/times) | According to the site process |
11 | Surface quality | No burning defects or scratch |
Product characteristics and performance
1. Internal grinder for bearing ringshas small size,strong rigidity and high processing accuracy.
2. This internal grinder for bearing rings’product size is dimensional discrete concentrated.The internal grindesr for bearing rings has perfect groove shape,roundness and curvature.This internal grinder for bearing rings can meet the accuracy requirements of motor bearings and high-precision bearings.
3. This internal grinding machine for bearing rings has adjustable control system resolution with 0.1μm and diamond disc rotary dressingwheel with perfect groove curvature and shape.
4. This internal grinder for bearing rings has stable and reliable optimal designed softwareand low failure rate.
5. This internal grinding machine for bearing rings has well-protected system.The internal grinder for bearing rings has no misoperation and misactionalmostly.
6. The self-diagnostic system of this internal grinder for bearing rings helpsthe operator solve problemsby text alarmconveniently.
7.Can set up passwords to protect parameterof this internal grinding machine for bearing rings and keep good process discipline and no accidents.
Other specifications
Machine Model | Processing Range(mm) | Working Accuracy | Total Power (kw) | Weight(kg) | Overall Dimensions (cm) | ||
d | b | ||||||
| 3MK203G | 10～40 | 9～20 | Meet the accuracy requirements of P5/P4 bearing rings | 22 | 3500 | 185×160×180 |
3MK2010G | 40～100 | 50 | 25 | 4500 | 220×186×175 | ||
3MK2016G | 80～160 | 20～80 | 30 | 4500 | 210×180×180 | ||
