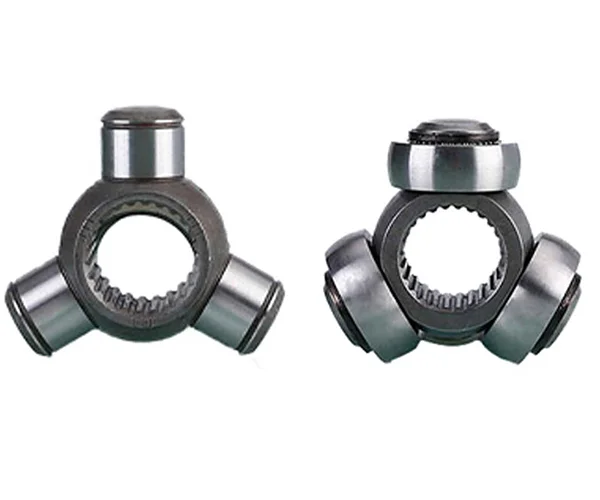

Customizable MK-315-B Grinder for Three-axis Pin
Grinding Wheel Spindle: diamond disc CAM
Control System: siemens 828D
Processing Mode: fully automatic
Precision: high precision
Certification: GS, CE, ISO 9001
Customisation: upon request
Place of Origin: Wuxi, China
Machining Accuracy Grade: P4/P5
External Dimensions: 1960mm*1660mm*2000mm
MOQ: 1 set
DM: 4 months
Packaging: three-ply board
Working range
Machine model | Range(mm) | Working accuracy | Total Power (kw) | Weight(kg) | Overall Dimensions (cm) | ||
D | d | Ball Head Diameter (mm) | Arc curvature | ||||
MK-315-B | 10～35 | 10～30 | 0.01~0.023 | 0~0.08 | 28 | 3500 | 196×166×200 |
Features and performance of this machine
The overall design of the machine tool has the advantages of small size, strong rigidity, high processing accuracy, centralized size dispersion, good circularity and curvature, which can meet the accuracy requirements of high-precision three-axis pins. The resolution of the control system is 0.1um, and the adjustment is convenient. The grinding wheel is dressed by diamond disc CAM, and the system is Siemens CNC 828D system. The software is optimized, the operation is stable and reliable, the failure rate is low, the system has a powerful protection function, can prevent misoperation and misoperation to the maximum extent, the system has a self-diagnosis function, when there is an abnormal situation, the man-machine interface has a text prompt and alarm function, the operator can troubleshoot the fault, the system parameters are protected by password users can set their own password to ensure the process discipline. Effectively prevent accidents.
