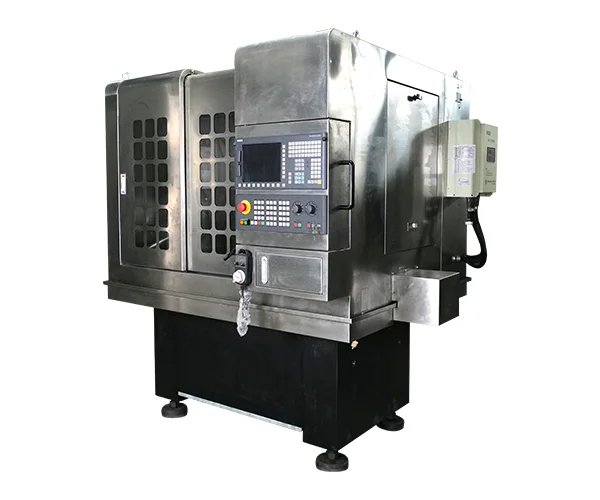

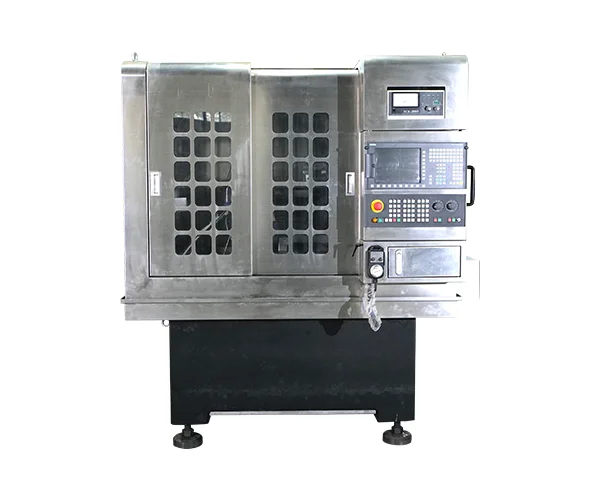

Customizable Taper Roller Bearing Outer Ring Lip Grinder

Machine Model		Processing Range (mm)		Working Accuracy	Total Power (kW)	Weight (kg)	Overall Dimensions (cm)	Remark
		d	b
	3MK2812	50～120	60	Meet the accuracy requirements of P5, P4 bearing rings.	20	5500	220×145×180
	3MK2820	100～200	80		25	5500	210×180×200

The characteristics and performance of this machine tool; the overall design of the machine tool is small, strong in rigidity, high processing accuracy, discrete size, ditch shape, roundness, and curvature, which can meet the high precision requirements of conical bearing, control system, Ximenzi 828D CNC + The roller screw + light delete control, the resolution is 0.1um, the adjustment is convenient, the sandwheel trimming uses the diamond butterfly tablet to repair, the trench is good, the trench shape is good, the system software is optimized, the movement is stable and reliable, the failure rate is low, the system is powerful The protection function can be largely to prevent misunderstanding and misunderstandings. The system has a self -diagnosis function. When abnormal conditions occur, the human -machine face has text prompts and alarm functions. Protecting users can set their own passwords to ensure craft discipline and effectively prevent accidents.

The taper roller bearing outer ring lip grinderhas small size,strong rigidity and high processing accuracy.

1. The product sizeof taper roller bearing outer ring lip grinder is dimensionaldiscrete concentrated.The taper roller bearing outer ring lip grinderhas perfect groove shape,roundness and curvature.

2. The taper roller bearing outer ring lip grinder is perfect for tapered bearing raceway with adjustable crown.

3. The taper roller bearing outer ring lip grinder can meet the requirements of P4 accuracy.

4. The taper roller bearing outer ring lip grinder uses Siemens 828D NC,ball screwand optical deletion control.The resolution of the taper roller bearing outer ring lip grinder is 0.1μm and it is adjustable.

5. The taper roller bearing outer ring lip grinder has diamond disc rotary dressing wheel with perfect groove curvature and shape.

6. The taper roller bearing outer ring lip grinder has stable and reliable optimal designedsoftware which has low failure rate.

7. The taper roller bearing outer ring lip grinder has well-protected system which has no misoperation and misaction almostly.

8. Self-diagnostic systemof the taper roller bearing outer ring lip grinder helps the operator solve problems by text alarm.

10.Can set up passwords to protect parameter of the taper roller bearing outer ring lip grinder and keep good process discipline and preventaccidents.
