Main Functions of Taper Roller Bearing Grinder

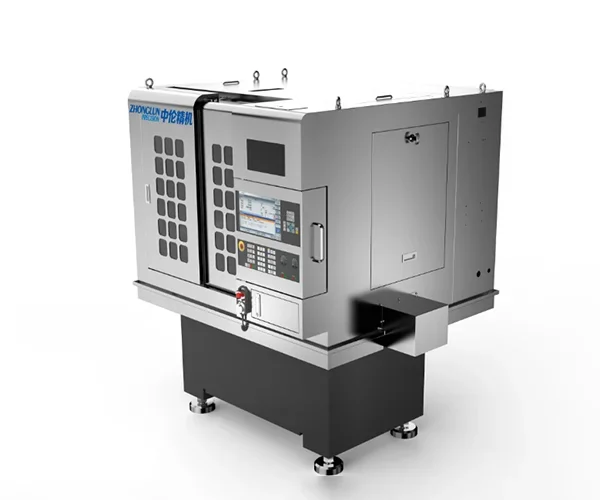

Sino Zhonglun Tech Group Co., Ltd. is a manufacturer of taper roller bearing grinder.

Taper roller bearing grinders are specialized machines designed to achieve high-precision machining of taper roller bearings. These bearings are critical components in various industries, including automotive, aerospace, and heavy machinery, due to their ability to handle both radial and axial loads efficiently. The primary function of a taper roller bearing grinder is to ensure the highest level of accuracy and reliability in the manufacturing process of these bearings.

1. Grinding of Inner and Outer Rings

One of the key functions of a taper roller bearing grinder is the precision grinding of the inner and outer rings of the bearing. These components are essential for the proper functioning of the bearing, as they provide the surfaces against which the rolling elements (tapered rollers) move. High-precision grinding ensures that the surfaces are smooth and free from defects, which is crucial for reducing friction and enhancing the bearing's load-carrying capacity.

Inner Ring Grinding: The inner ring is the part of the bearing that fits tightly around the shaft. The grinder is used to achieve precise dimensions and surface finish on the inner ring, ensuring a perfect fit and smooth operation. The process involves multiple steps, including rough grinding, finish grinding, and final inspection to ensure that the inner ring meets the required specifications.

Outer Ring Grinding: The outer ring is the stationary part of the bearing that supports the load. Similar to the inner ring, the outer ring requires high-precision grinding to ensure that it provides a stable and reliable support surface for the rolling elements. The grinder is equipped with advanced tools and techniques to achieve the required surface finish and dimensional accuracy.

2. Grinding of Tapered Rollers

The tapered rollers are the rolling elements that transmit the load between the inner and outer rings. The shape and size of these rollers are critical for the performance of the bearing. The grinder is used to achieve the precise dimensions and surface finish of the tapered rollers, ensuring that they roll smoothly and efficiently within the bearing.

Roller Profile Grinding: The grinder is capable of producing the complex profile of the tapered rollers with high precision. This involves grinding the conical shape of the rollers to ensure that they fit perfectly within the raceways of the inner and outer rings. The grinder uses advanced CNC technology to control the grinding process, ensuring that each roller is produced to the exact specifications required.

Surface Finish: The surface finish of the tapered rollers is crucial for reducing friction and wear. The grinder uses fine-grit wheels to achieve a smooth surface finish, which helps to extend the life of the bearing and improve its overall performance.

3. Grinding of Retainers

The retainers (or cages) are the components that hold the tapered rollers in place and ensure that they are evenly spaced within the bearing. The grinder is used to produce the retainers with high precision, ensuring that they fit perfectly within the bearing and provide the necessary support for the rolling elements.

Material and Design: Retainers are typically made from materials such as brass, steel, or plastic, depending on the application. The grinder is capable of working with these different materials to produce retainers that meet the required specifications. The design of the retainers is also crucial, as they must be able to withstand the forces generated during operation while providing minimal interference with the rolling elements.

Precision Grinding: The grinder is used to achieve the precise dimensions and surface finish of the retainers. This involves grinding the inner and outer surfaces of the retainers to ensure that they fit perfectly within the bearing and provide the necessary support for the rolling elements. The grinder uses advanced tools and techniques to achieve the required precision and surface finish.

Importance of High-Precision Grinding

High-precision grinding is essential for the performance and reliability of taper roller bearings. The following points highlight the importance of this process:

Reduced Friction: High-precision grinding ensures that the surfaces of the bearing components are smooth and free from defects. This reduces friction and wear, which helps to extend the life of the bearing and improve its overall performance.

Increased Load-Carrying Capacity: Precision grinding ensures that the bearing components fit together perfectly, which helps to increase the load-carrying capacity of the bearing. This is particularly important in applications where the bearing is subjected to high loads.

Enhanced Reliability: High-precision grinding helps to ensure that the bearing components are free from defects and imperfections. This enhances the reliability of the bearing and reduces the risk of failure during operation.
