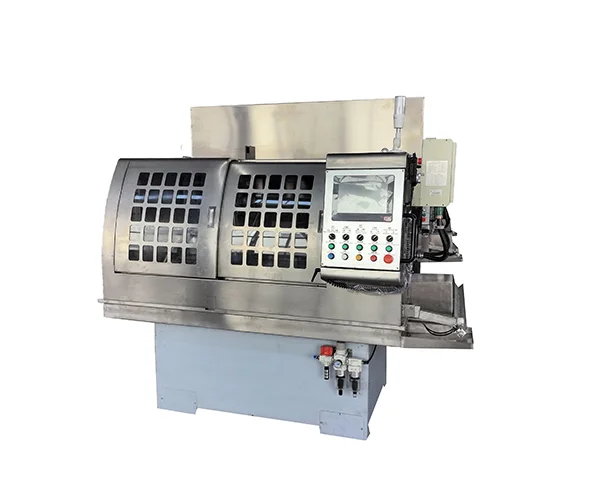

Customizable 3MK3410B CNC Automatic Outer Ring Track Superfinishing Machine for Tapered And Cylindrical Roller Bearing
Abrasives: diamond wheel
Controlling Mode: CNC
Processing Mode: fully automatic
Precision: high precision
Certification: GS, CE, ISO 9001
Customisation: upon request
Place of Origin: Wuxi, China
Machining Accuracy Grade: P4/P5
External Dimensions: 1330mm*1220mm*1720mm
MOQ: 1 set
DM: 4 months
Packaging: three-ply board
Working range
Machine Model | Processing Range(mm) | Working Accuracy | Total Power (kw) | Weight (kg) | Overall Dimensions (cm) | |||
d(D) | b | Roundness Improvement (%) | Roughness (Ra) | |||||
| 3MK3410B | 50～100 | 8～25 | 30 | 0.08 | 8 | 3500 | 133×122×172 |
3MK3420B | 100～200 | 25～50 | 30 | 0.08 | 10 | 4500 | 220×150×175 | |
Product characteristics and performance
The characteristics of this machine: the cone and cylindrical raceway ultra-precision are all single stations. The inner ring is in the form of inner hole positioning end surface compression, and the inner ring edge is completed on the same machine. The outer ring is pressed with the outer diameter positioning end surface, and the support is supported by ceramic.
The spindle of the workpiece is a mechanical shaft structure, and the speed of the workpiece is ABB motor + frequency converter stepless speed regulation; oilstone pressure is adjustable, oilstone automatic compensation, oilstone replacement alarm; oilstone swing head uses servo to control reciprocating motion mechanism to achieve convex ultra-precision; ultra-precision mode adopts single-position one-step method ultra-precision.
