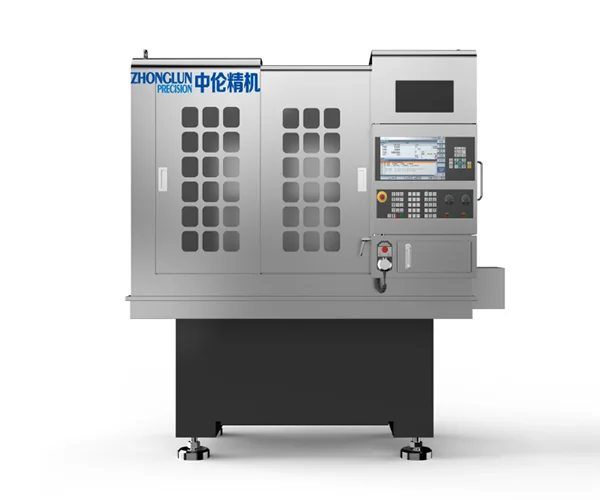

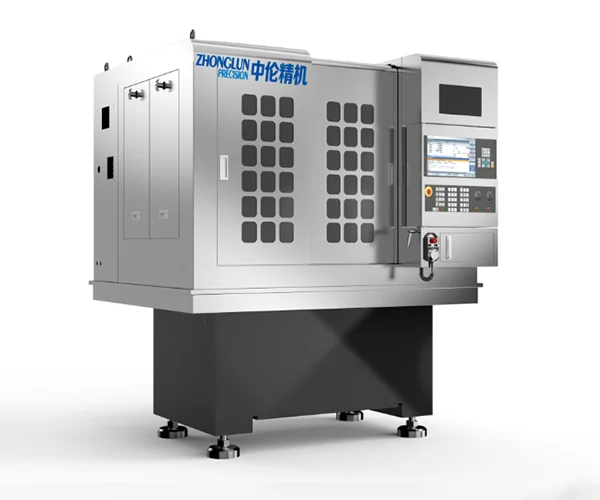

Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing
Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing
Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing
Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing
Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing
Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing

Customizable 3MK2310B CNC Automatic Outer Ring Track Grinder for Tapered Roller Bearing

share
twitter skype wechat facebook linkedin
Type: high precision bearing grinder Abrasives: diamond wheel Controlling Mode: CNC Processing Mode: fully automatic Precision: high precision Certification: GS, CE, ISO 9001 Customisation: upon request Place of Origin: Wuxi, China Machining Accuracy Grade: P4/P5 External Dimensions: 2100mm*1750mm*2030mm MOQ: 1 set DM: 3 months Packaging: three-ply board
Product details

3MK2310B Machining accuracy

NO.

Item

Parameters

1

Residual amount (including deformation error) (mm)

0.08~0.12

(Diameter direction)

2

Size Deviation(mm)

0~0.012 mm

3

Ellipticity  (mm)

0.003mm

4

Roundness of the Groove

(2-15 waves) mm

0.003mm

5

Groove Angle deviation

±0.005mm

6

Roughness (um)

0.32μm

7

Degree of Angle

±4

8

Degree of  Waviness

≤0.1

9

Degree of Convexity

Stable

10

Wall Thickness Deviation (mm)

≤7

11

Surface Quality

No burning defects or scratch

12

Efficiency

8 - 10 seconds

Product characteristics and performance

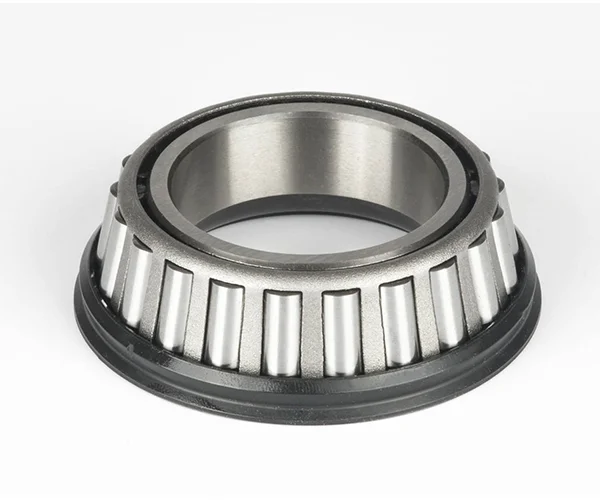

1. The taper roller bearing outer ring groove grinder has small size,strong rigidity and high processing accuracy.

2. The product sizeof taper roller bearing outer ring groove grinder is dimensionaldiscrete concentrated.The taper roller bearing outer ring groove grinderhas perfect groove shape,roundness and curvature.

3. The taper roller bearing outer ring groove grinder is perfect for tapered bearing raceway with adjustable crown.

4. The taper roller bearing outer ring groove grinder can meet the requirements of P4 accuracy.

5. The taper roller bearing outer ring groovegrinder uses Siemens 828D NC,ball screwand optical deletion control.The resolution of the taper roller bearing outer ring groove grinder is 0.1μm and it is adjustable.

6. The taper roller bearing outer ring groove grinder has diamond disc rotary dressing wheel with perfect groove curvature and shape.

7. The taper roller bearing outer ring groove grinder has stable and reliable optimal designedsoftware which has low failure rate.

8. The taper roller bearing outer ring groove grinder has well-protected system which has no misoperation and misaction almostly.

9. Self-diagnostic systemof the taper roller bearing outer ring groovegrinder helps the operator solve problems by text alarm.

10.Can set up passwords to protect parameter of the taper roller bearing outer ring groove grinder and keep good process discipline and preventaccidents.

Other specifications

Machine Model

Processing Range(mm)

Working Accuracy

Total Power

(kw)

Weight(kg)

Overall Dimensions

(cm)

d

b

3MK2310B CNC Automatic Tapered Roller Bearing Outer Ring Groove Grinder

3MK2310B

30~100

12~40

Meet the accuracy requirements of P5 and P4 bearing rings

14

3500

210×175×203

3MK2320B

100~200

20~60

20

4500

210×168×187
