Customizable MK-315-B Grinder for Three-axis Pin

Customizable Taper Roller Bearing Outer Ring Lip Grinder

Customizable Textile bearing

False-twister bearings : our series KF6 of frictional false-twister bearings are designed according to the integral double-row deep groove balls with low noise, high load capacity, long life, good dynamic balance, and limiting speed of 20,000rpm. Due to the shields and L-shaped seals, excellent dust-proof effect is achieved.
Production models include 2849, 2542; pinch roller bearing 2143, 2554; separate roller 2137, idler bearing 2032, yarn guide bearing, Rotor Bearings.

manager@wxlongar.com

Message

Customizable MK7660GZ Double End Grinding Machine

Customized non-standard bearing

Product details

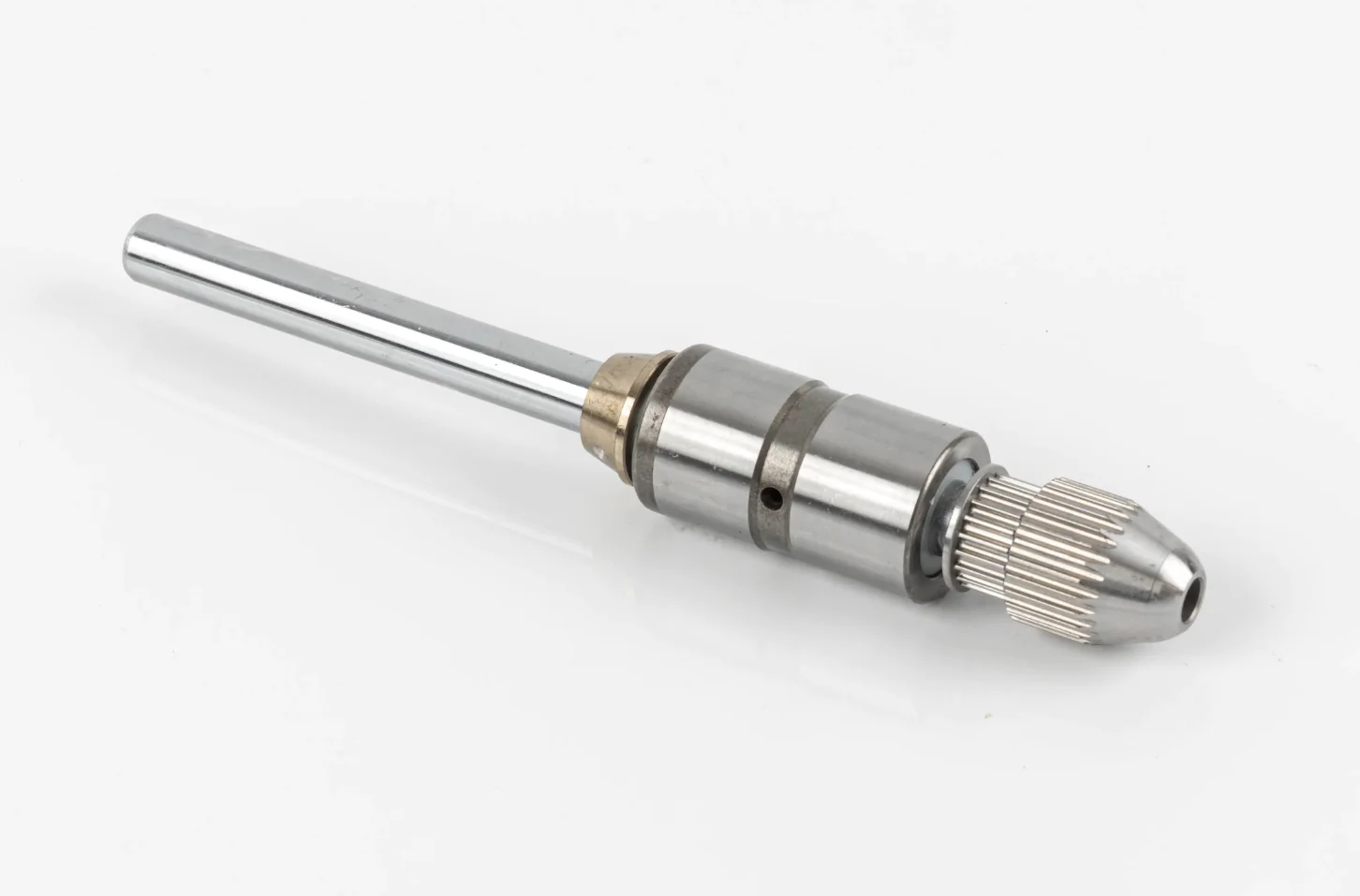

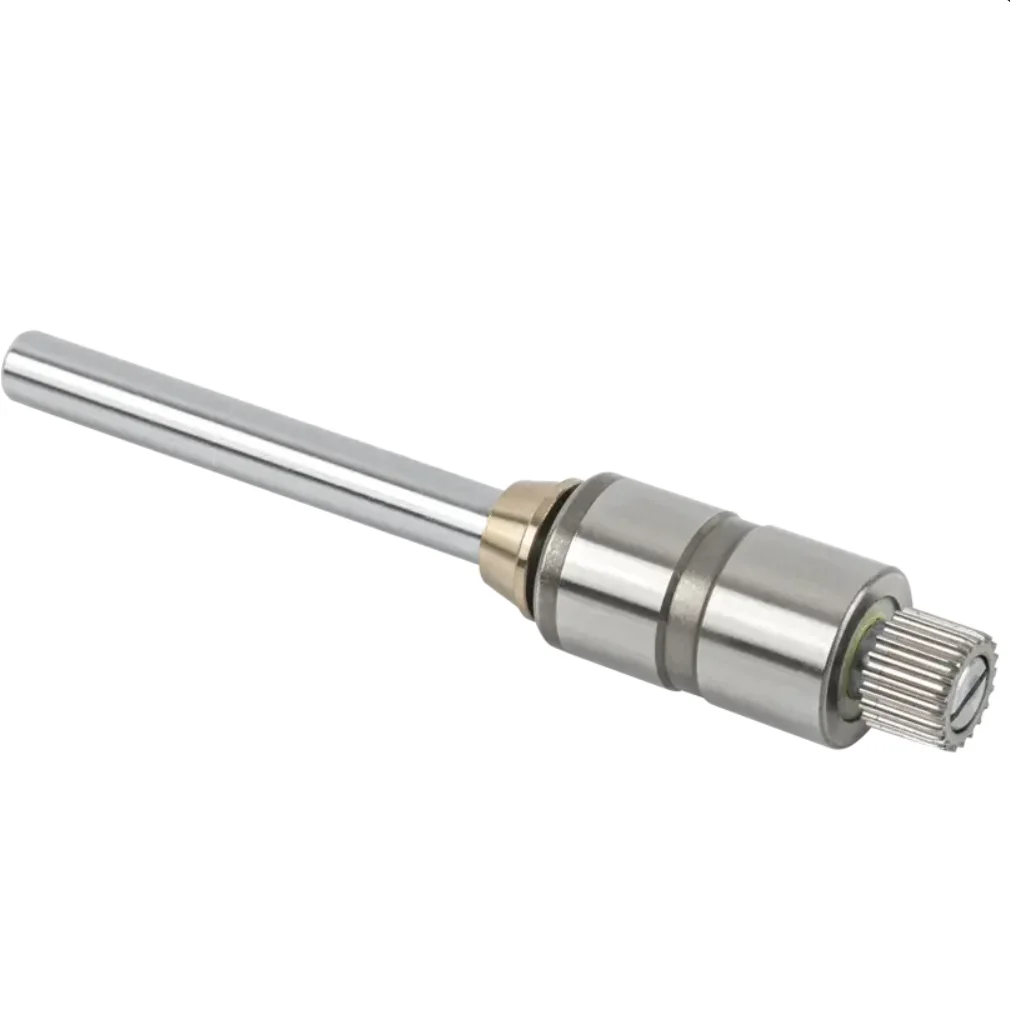

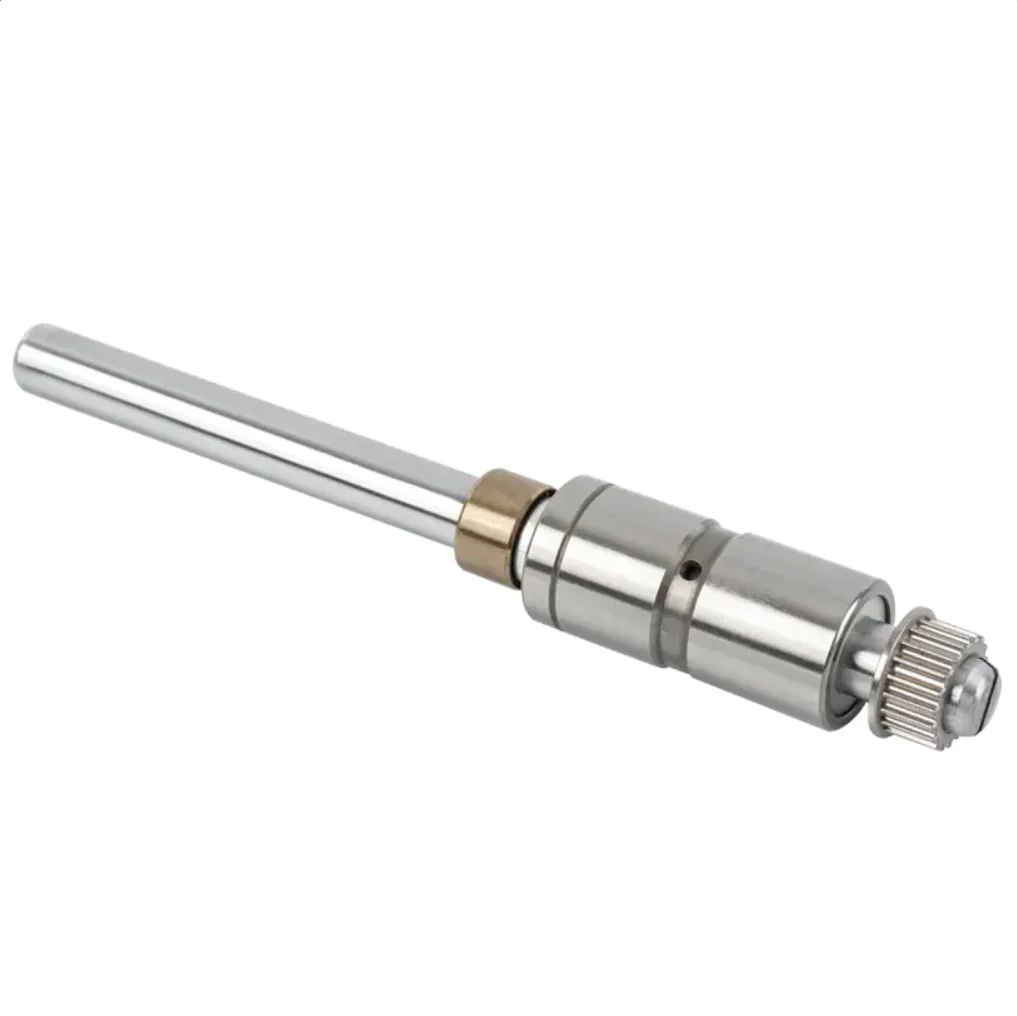

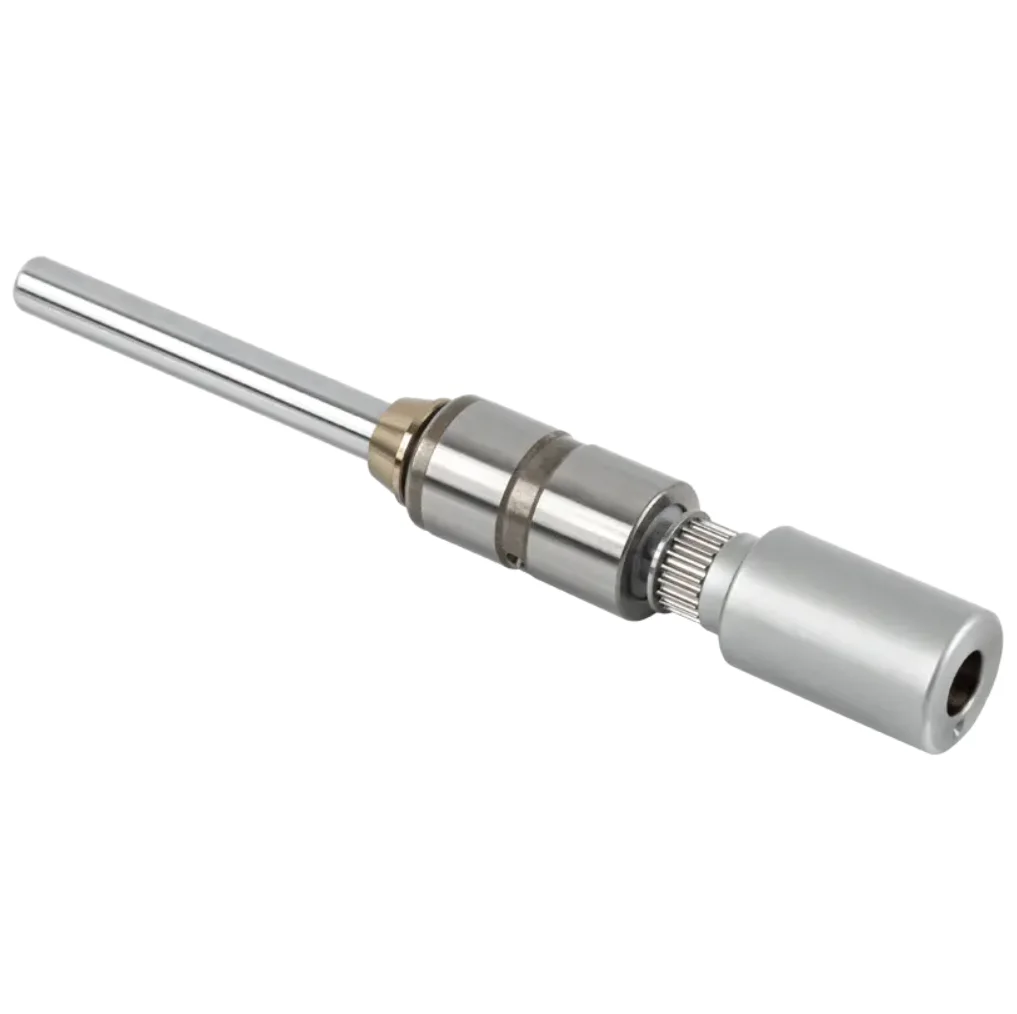

False Twister Bearing For DTY Machine

Textile bearing

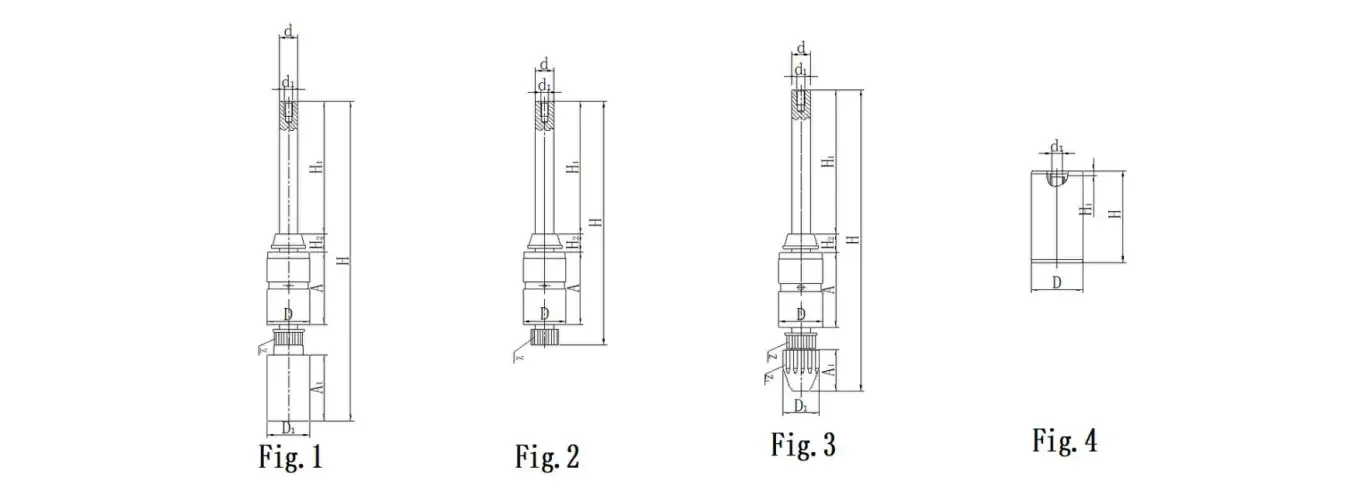

False Twister Bearing For DTY Machine

Designation

Fig

FTZ2849-Z1

ø12

ø28

218.5

90.5

12.5

49.5

Fig.1

FTZ2849-Z2

ø12

ø28

169

90.5

12.5

49.5

Fig.2

FTZ2849A-Z1

ø12

ø28

ø23

194

90.5

12.5

49.5

27.5

Fig.3

FTZ2032-Z3

ø25

1.5

Fig.4

Remarks

Fig1 and Fig2 are suitable for FK6-1000 machine, Fig2 and Fig3 are suitable for electric spindle machine.

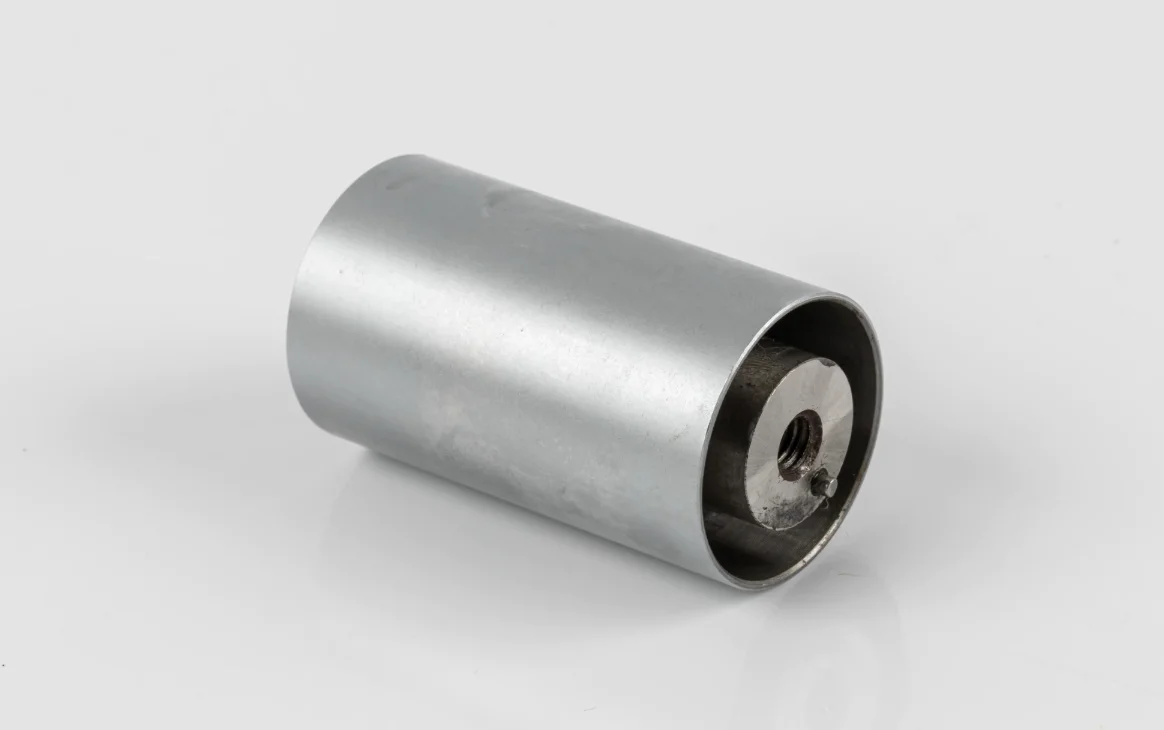

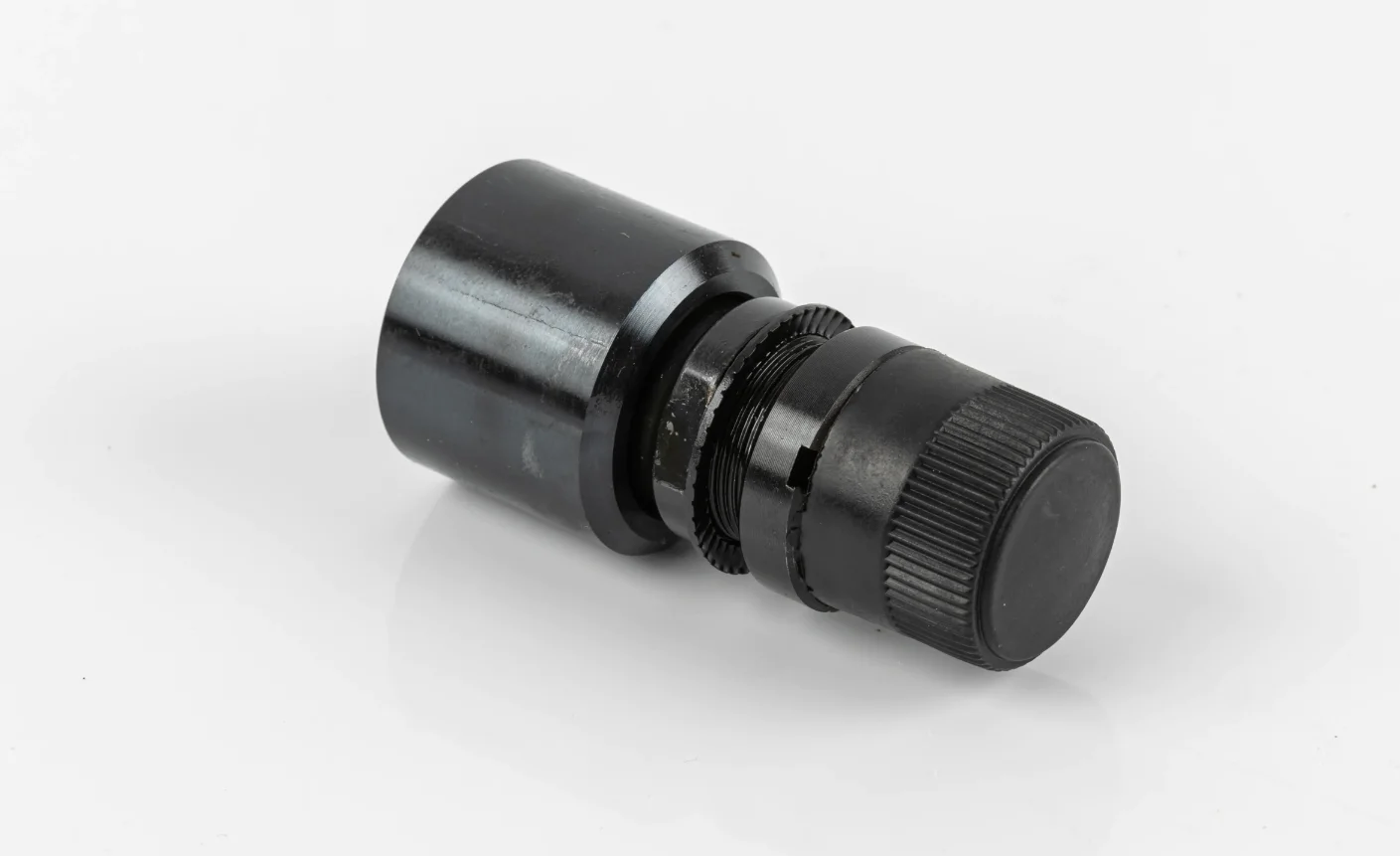

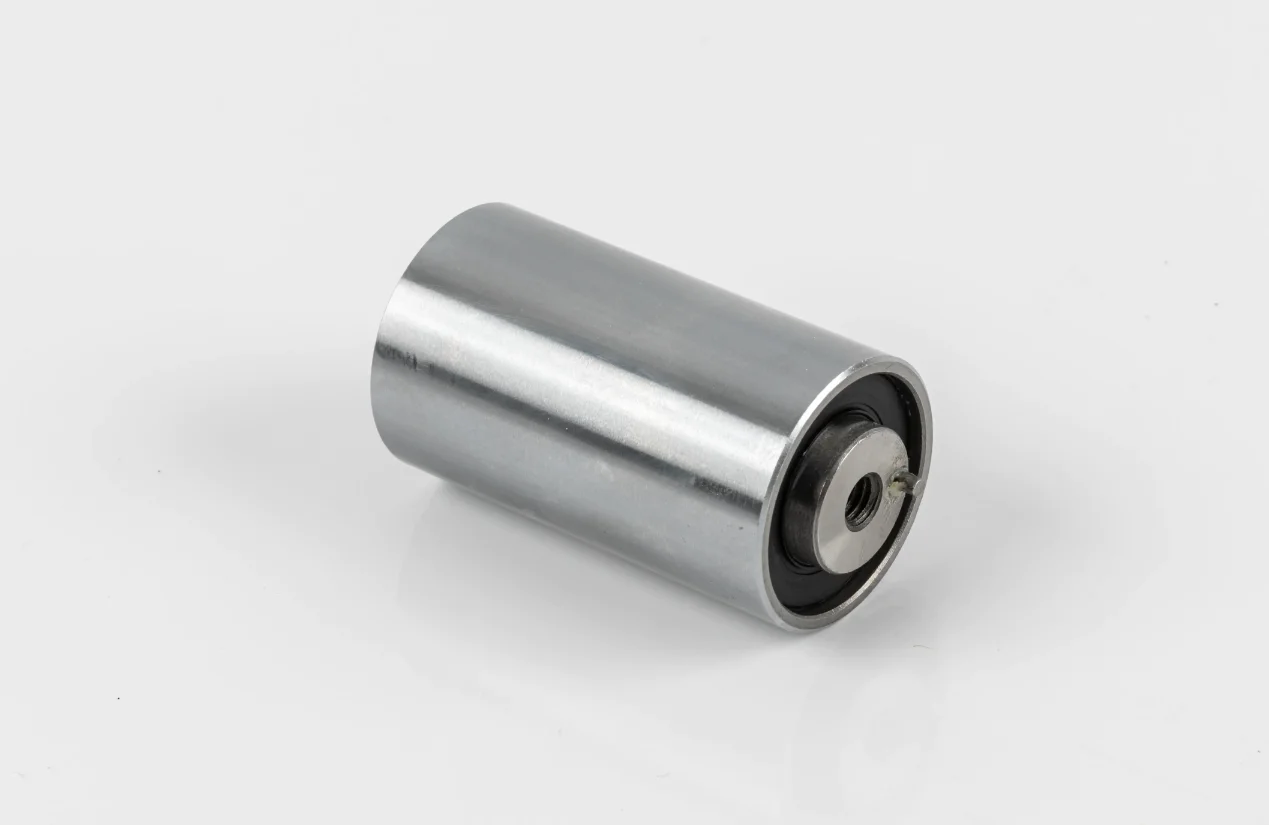

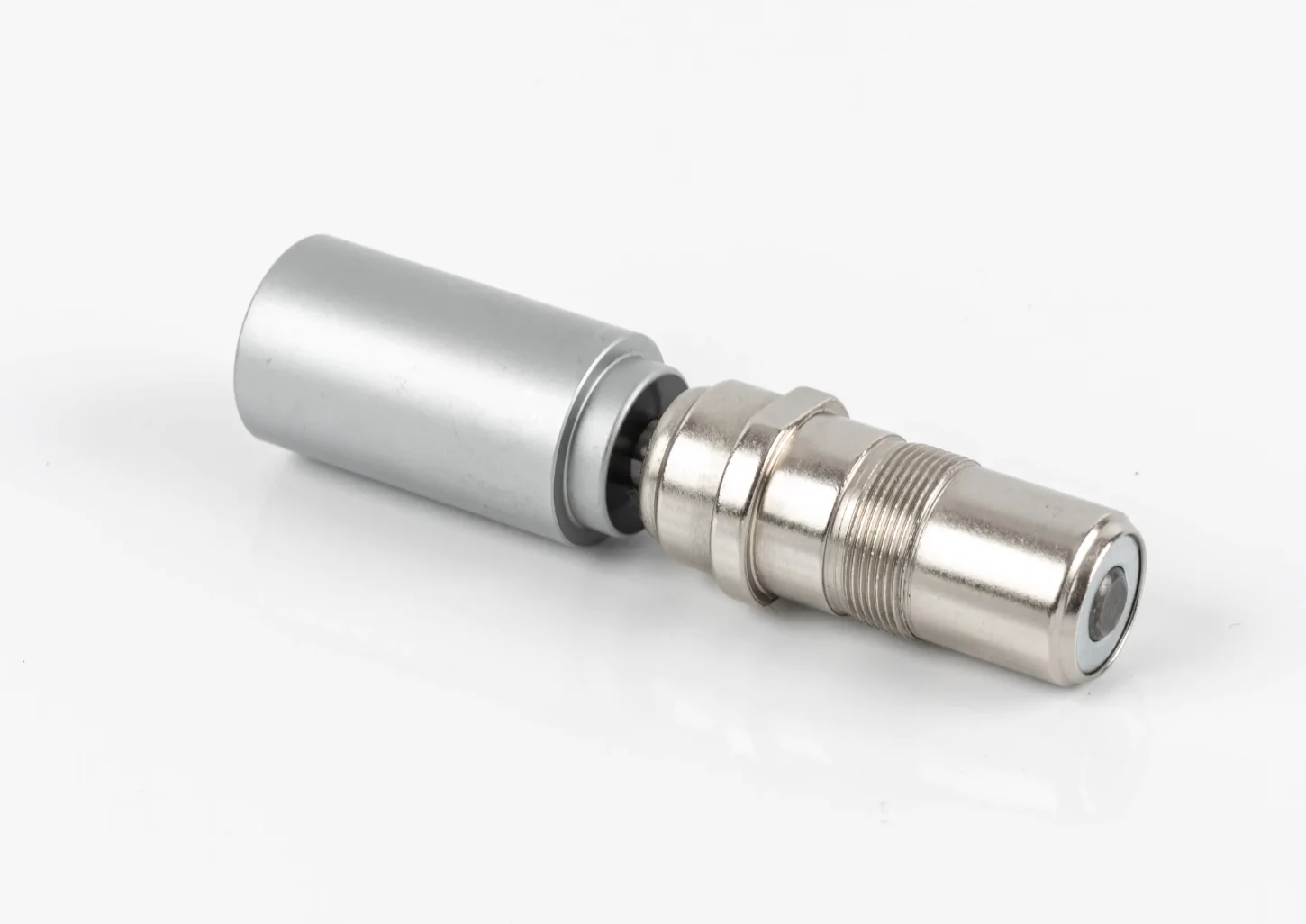

Pinch Roller Bearing For DTY Machine

Textile bearing

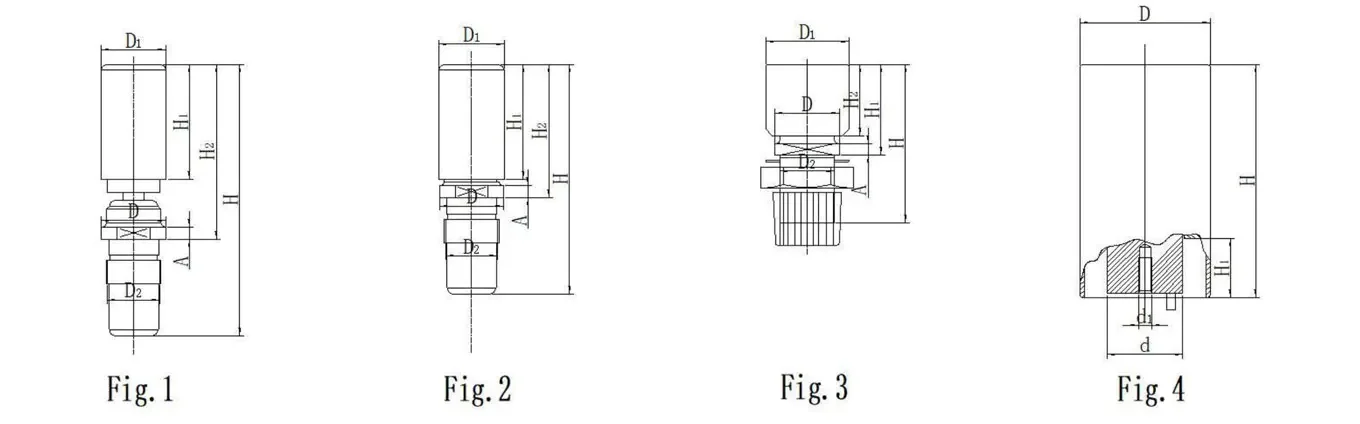

Pinch Roller Bearing For DTY Machine

Designation

Fig

FTZ2452E-Z3

ø8.1

ø24.7

ø25

M21

105.5

4.5

Fig.1

FTZ2554

ø8.1

ø24.7

ø25

M21

89.5

44.5

50.7

4.5

Fig.2

FTZ2123-DL

ø8.1

ø24.7

ø32

M21

63.8

35.1

27.5

4.5

Fig.3

FTZ3052

ø17.4

ø28

55.5

Fig.4

Remarks

Suitable for TENS of FK6 series DTY machine.

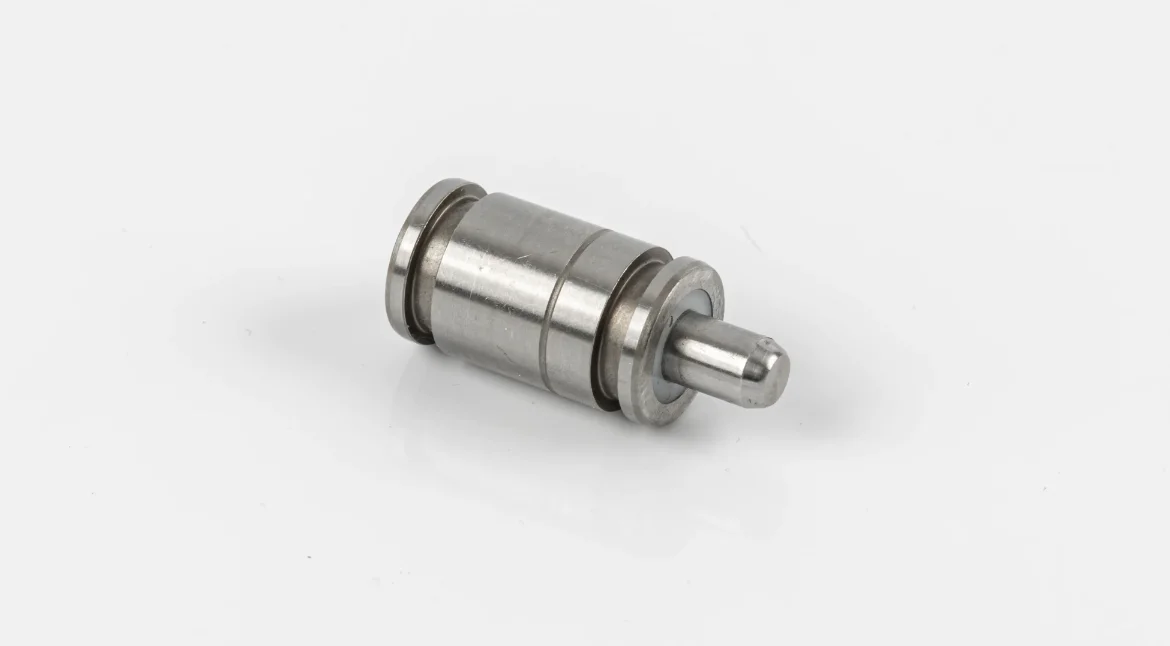

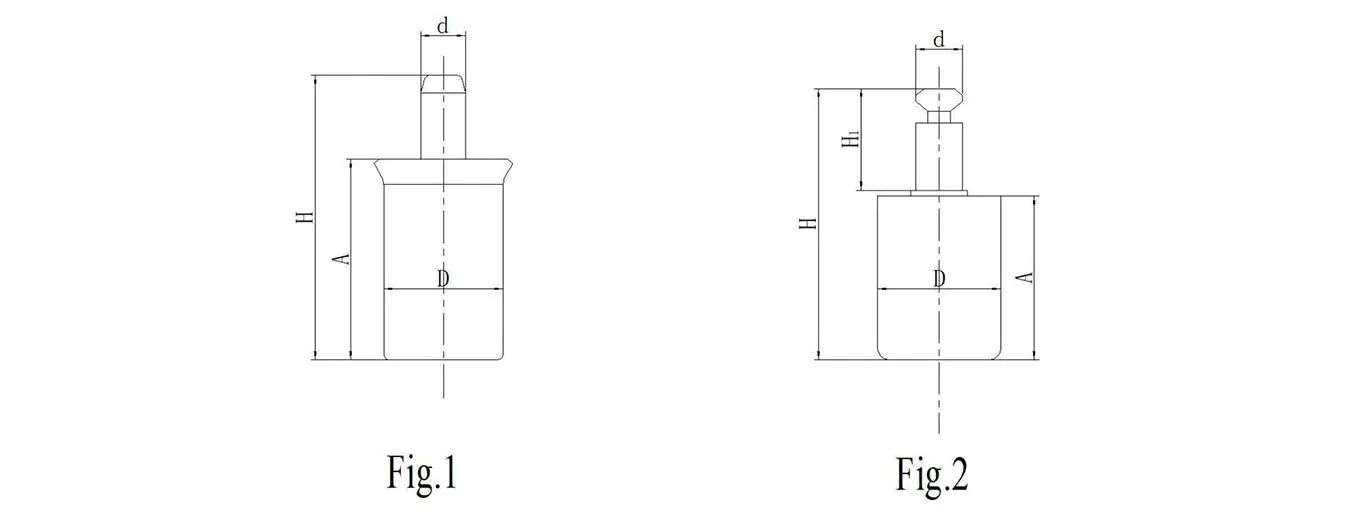

Winding Bearing For DTY Machine

Designation

Fig

FTZ2849B

ø28

119

20.5

12.5

49.5

Fig.1

FTZ1424

ø39

Fig.2

Remarks

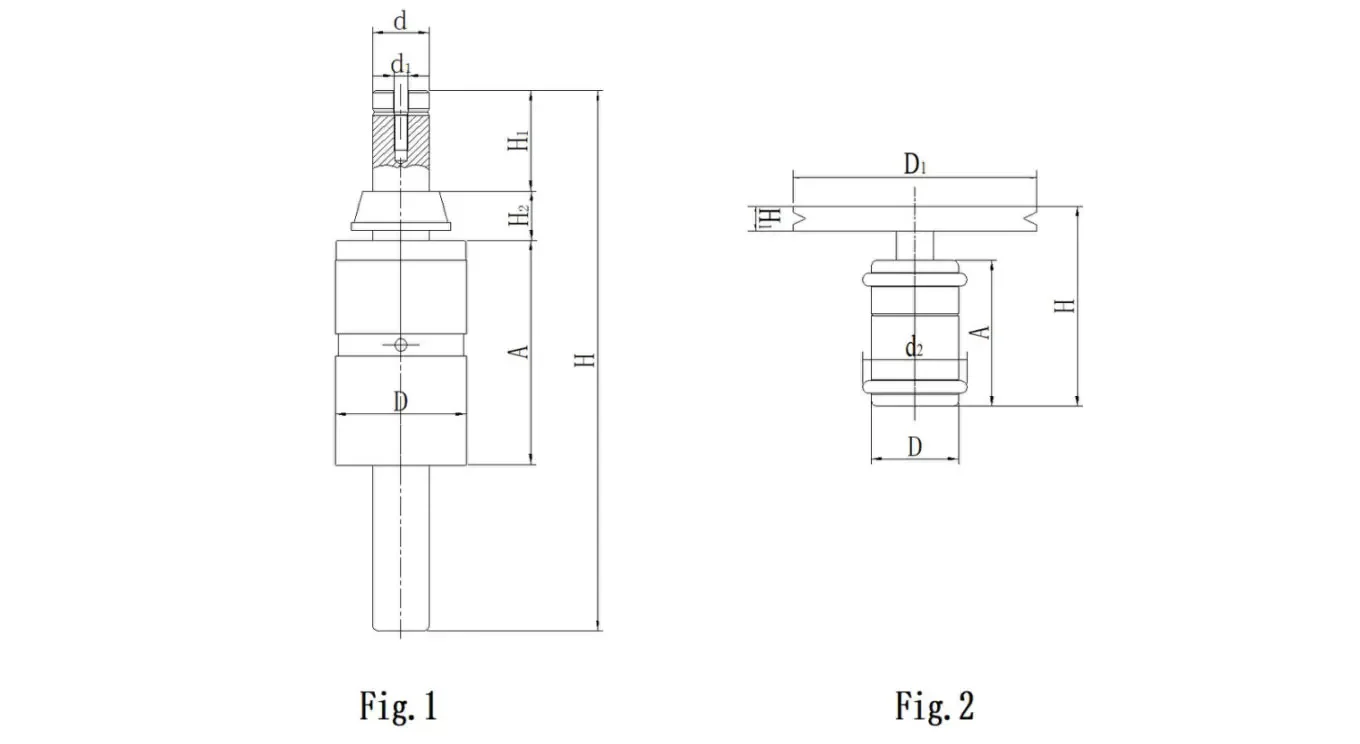

Fig1 and Fig2 are suitable for "BARMAG" pre-spinning winding machine, where Fig1 is the guide wheel and Fig2 is the yarn guide bearing.

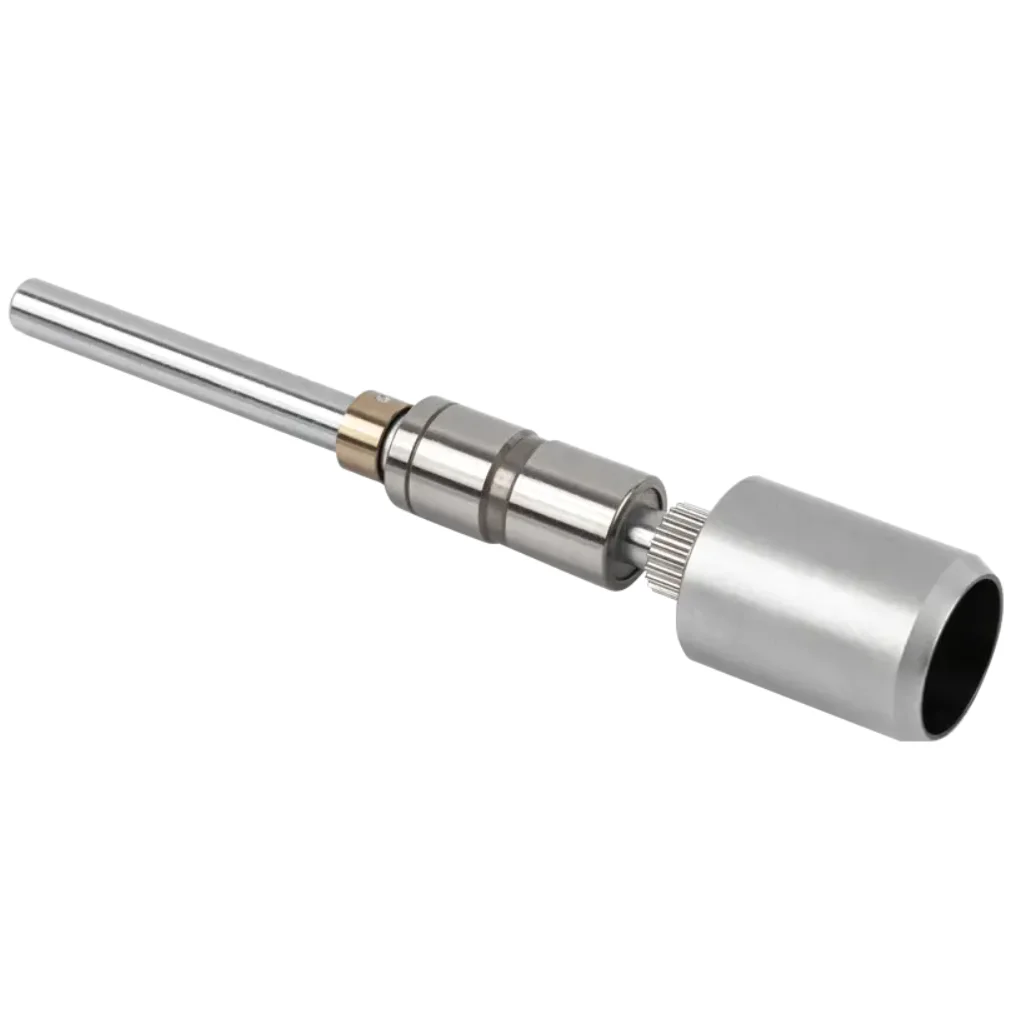

False Twister Bearing For DTY Machine

Textile bearing

False Twister Bearing For DTY Machine
Designation	d	d1	D	D1	H	H1	H2	A	A1	Z	Z1	Fig
FTZ2452B-Z1	ø12	M6	024	ø38	224	86.1	13.9	52	20	20		Fig.1
FTZ2452B-Z2	ø12	M6	ø24		169	86.1	13.9	52	20	20		Fig.2
FTZ2452S-Z1	ø12	M5	ø24	ø38	223.5	87	13	52	20	20		Fig.1
FTZ2452T-Z1	ø12	M6	ø24	ø38	223	87	13	52	20	31		Fig.1
FTZ2452C-Z1	ø12	M5	ø24	ø22	209	74.3	13	52	20	31		Fig.3
FTZ2452C-Z2	ø12	M5	ø24		160	74.3	13	52	20	31		Fig.4
FTZ2452E-Z1	ø12	M6	ø24	ø25	208.5	68	13	52	20	26		Fig.5
FTZ2452E-Z2	ø12	M6	ø24		154	68	13	52	20	26		Fig.6
Remarks	Fig.1 and Fig.2 are suitable for the 'Double Yarn' machine.
	Fig.3 and Fig.4 are for the French ICBT "8E3' machine.
	Fig.5 and Fig.6 are applicable to "Nylon machine" and "RPR° machine from Italy.
