Customizable Four-point contact ball bearing

High load capacity: a good many balls can be placed into the bearing to achieve higher load capacity. Separation-type design: separable inner ring can contribute to mounting and dismounting of bearings more conveniently. Four-point contact ball bearings such as 4P305AB and 4P306AB produced by Zhonglun can be used in the steering system of the automobile industry.

manager@wxlongar.com

Message

Customized non-standard bearing

Customizable Ultra-high Speed Integrated Bearing

Product details

Four-point contact ball bearings are angular contact ball bearings that can support two-way axial loads. Four-point contact ball bearings are generally designed for scenarios like pure axial load or two-point contact circumstances under synthetic load( more axial loads). The high limiting speed of four-point contact ball bearings prepares them for the high-speed operating environment.

Four-point contact ball bearings can withstand axial loads in two directions and take up less axial space. And these bearings occupy significantly less axial space compared with double-row ones.

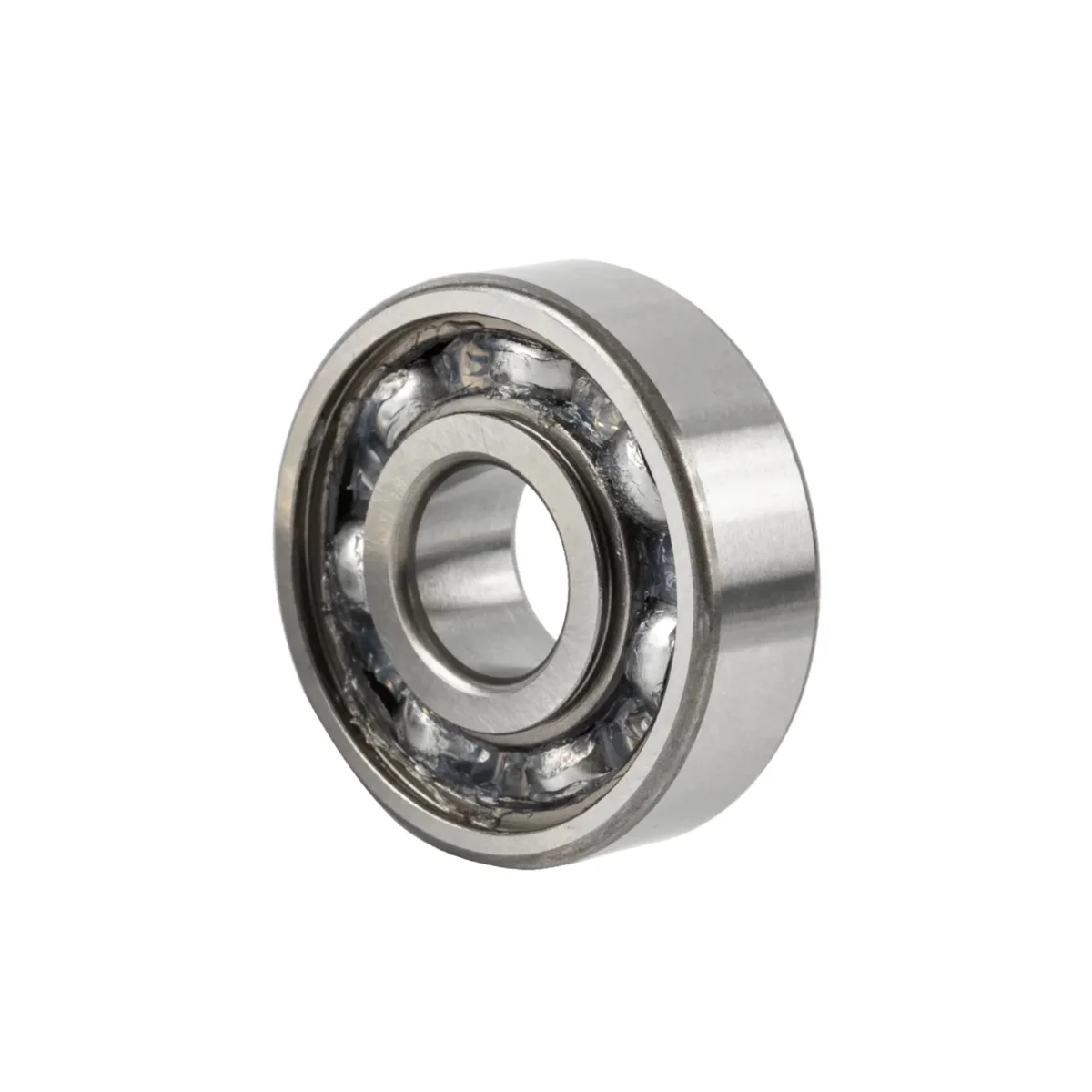

Four-point contact ball bearing

Four-point contact ball bearing List
Designation			Dimensions (mm)				Rated load (N)		Limit speed（rpm)
Open	Shield	Seal	d	D	B	rsmin.	Cr	Cor	Grease ZZ	Grease 2RS	Oil
4P100AC	4P100AC-2Z	4P100AC-2RS	10	26	8	0.3	6600	3500	21400	17100	25600
4P200AB	4P200AB-2Z	4P200AB-2RS		30	9	0.6	7300	4200	18000	15100	24000
4P300AB	4P300AB-2Z	4P300AB-2RS		35	11	0.6	11100	6200	17200	14000	22000
4P101AC	4P101AC-2Z	4P101AC-2RS	12	28	8	0.3	7900	4900	19000	15100	22600
4P201AB	4P201AB-2Z	4P201AB-2RS		32	10	0.6	9900	5500	16000	13600	22000
4P301AB	4P301AB-2Z	4P301AB-2RS		37	12	1	14600	7800	16000	13300	21000
4P102AC	4P102AC-2Z	4P102AC-2RS	15	32	9	0.3	7300	4400	16700	13300	20000
4P202AB	4P202AB-2Z	4P202AB-2RS		35	11	0.6	12700	8300	15000	12300	20000
4P302AB	4P302AB-2Z	4P302AB-2RS		42	13	1	16700	9700	14000	11600	19000
4P103AC	4P103AC-2Z	4P103AC-2RS	17	35	10	0.3	7800	5100	16000	12500	19000
4P203AB	4P203AB-2Z	4P203AB-2RS		40	12	0.6	15900	10600	13000	11100	18000
4P303AB	4P303AB-2Z	4P303AB-2RS		47	14	1	23400	15000	13000	10600	17000
4P104AC	4P104AC-2Z	4P104AC-2RS	20	42	12	0.6	13200	8800	14000	10600	17000
4P204AB	4P204AB-2Z	4P204AB-2RS		47	14	1	23100	14100	12000	10000	16000
4P304AB	4P304AB-2Z	4P304AB-2RS		52	15	1.1	29600	20000	11500	9600	14000
4P105AC	4P105AC-2Z	4P105AC-2RS	25	47	12	0.6	14000	10000	12000	9500	14000
4P205AB	4P205AB-2Z	4P205AB-2RS		52	15	1	25100	20000	11000	9000	14000
4P305AB	4P305AB-2Z	4P305AB-2RS		62	17	1.1	39000	28000	10000	8200	13000
4P106AC	4P106AC-2Z	4P106AC-2RS	30	55	13	1	18300	14200	10000	8200	12000
4P206AB	4P206AB-2Z	4P206AB-2RS		62	16	1	35100	28500	9100	7400	12000
4P306AB	4P306AB-2Z	4P306AB-2RS		72	19	1.1	49400	38000	8500	7200	11000
4P107AC	4P107AC-2Z	4P107AC-2RS	35	62	14	1.5	22100	17600	9000	7300	11000
4P207AB	4P207AB-2Z	4P207AB-2RS		72	17	1.1	46200	39000	8000	6400	10000
4P307AB	4P307AB-2Z	4P307AB-2RS		80	21	1.5	59200	46500	7800	6700	10500
4P108AC	4P108AC-2Z	4P108AC-2RS	40	68	15	1.5	23000	19700	8300	6700	10000
4P208AB	4P208AB-2Z	4P208AB-2RS		80	18	1.5	52700	45000	7000	6000	9000
4P308AB	4P308AB-2Z	4P308AB-2RS		90	23	1.5	71500	58500	7500	6100	10000
Contact angle：suffix AC: 25° suffix A: 30° suffix B: 40° suffix C: 15°
