Customizable Ultra-high Speed Integrated Bearing
The ultra-high speed integrated bearings manufactured by zhonglun serve as the exclusive solution for blowers and vacuums above 130,000 rpm. They can also be put into fields of LIDAR, UAV, aerospace, etc.
Designations, parameters and designs of some ultra-high speed integrated bearing are listed in the catalog.
Ultra-highSpeed IntegratedBearingList | ||||||||

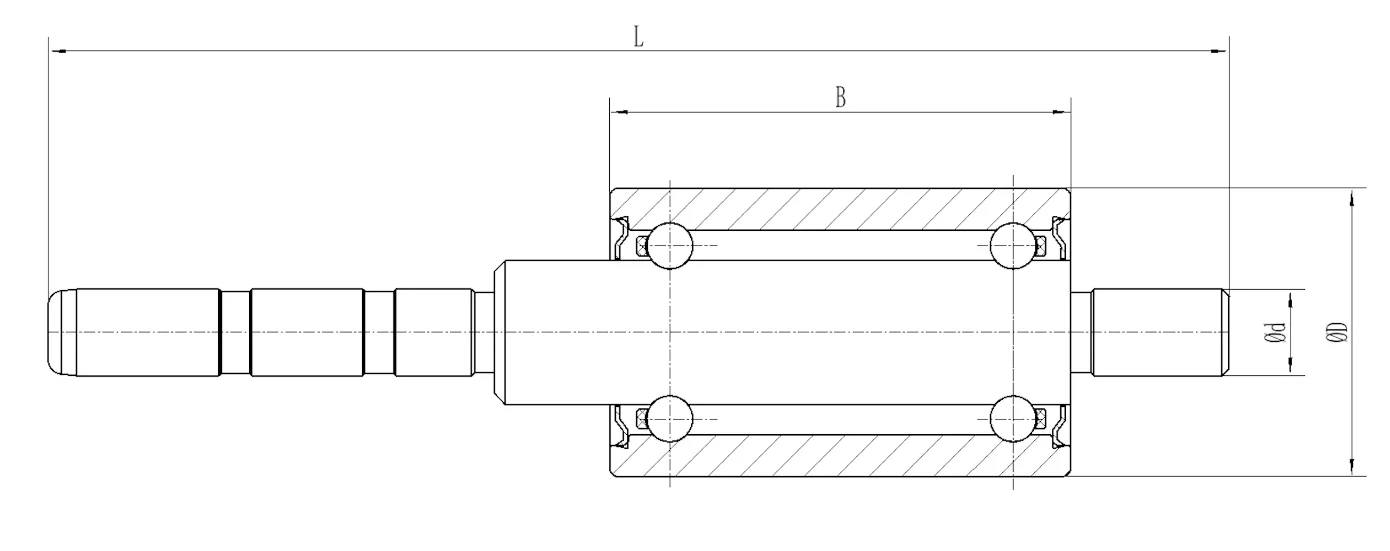

Form Structure | Designation | Dimensions(mm) | Rated load (N) | Limiting speed (rpm) | ||||
Shield | d2 | D | B | L | Cr | Cor | Grease | |

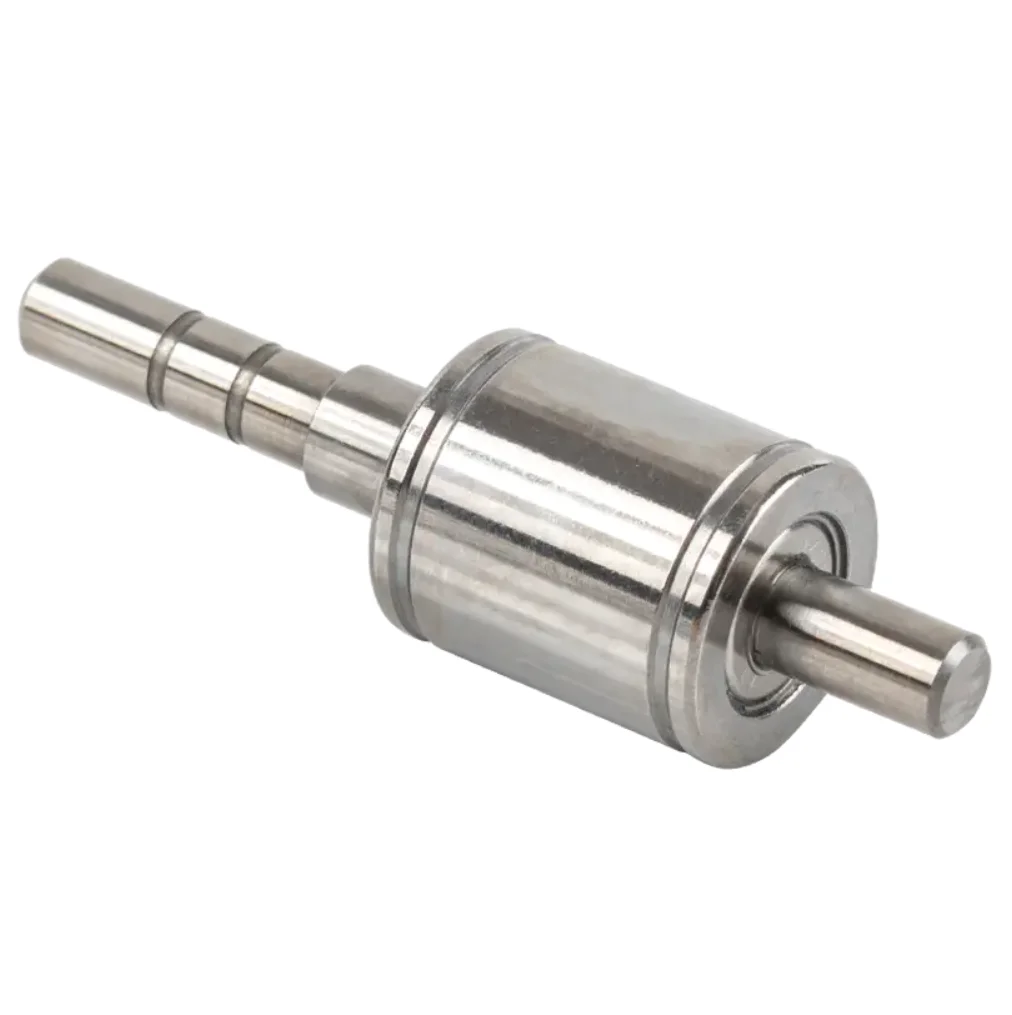

Cantilevered Integrated Bearing | LT-47-NH1045 | ∅3:∅4 | 10 | 16 | 45 | 437 | 191 | 550K |
LT-945 | ∅3-∅4.2 | 9 | 15.5 | 45.5 | 844 | 347 | 200K | |
LT-6-JE1046 | ∅3*∅5 | 10 | 16 | 45 | 974 | 438 | 150K | |
LT-6-LK1040B | 10 | 16 | 41 | 974 | 438 | 150K | ||
LT-64-DM1352 | ∅4*∅5 | 13 | 18 | 51.7 | 1268 | 544 | 180K | |
LT-6-DM1352GEN3 | 13 | 18 | 51.7 | 974 | 438 | 180K | ||
LT-64-DG1357 | 13 | 18 | 57.5 | 1268 | 544 | 200K | ||
LT-64-WL1340 | ∅5 | 13 | 16 | 40.1 | 1268 | 544 | 150K | |
LT-64-DM1552 | 15 | 18 | 51.7 | 1268 | 544 | 150K | ||
LT-64-WL1350 | 13 | 22 | 50 | 1268 | 544 | 150K | ||
LT-1349 | ∅5*∅6.3 | 13 | 22 | 49.25 | 1478 | 696 | 135K | |
LT-76-TT1551 | 15 | 18 | 51 | 1478 | 696 | 135K | ||
LT-87-NH1551 | ∅5*∅7.3 | 15 | 22 | 51 | 1653 | 845 | 150K | |
|
|
|
|
|
|
|
|
|

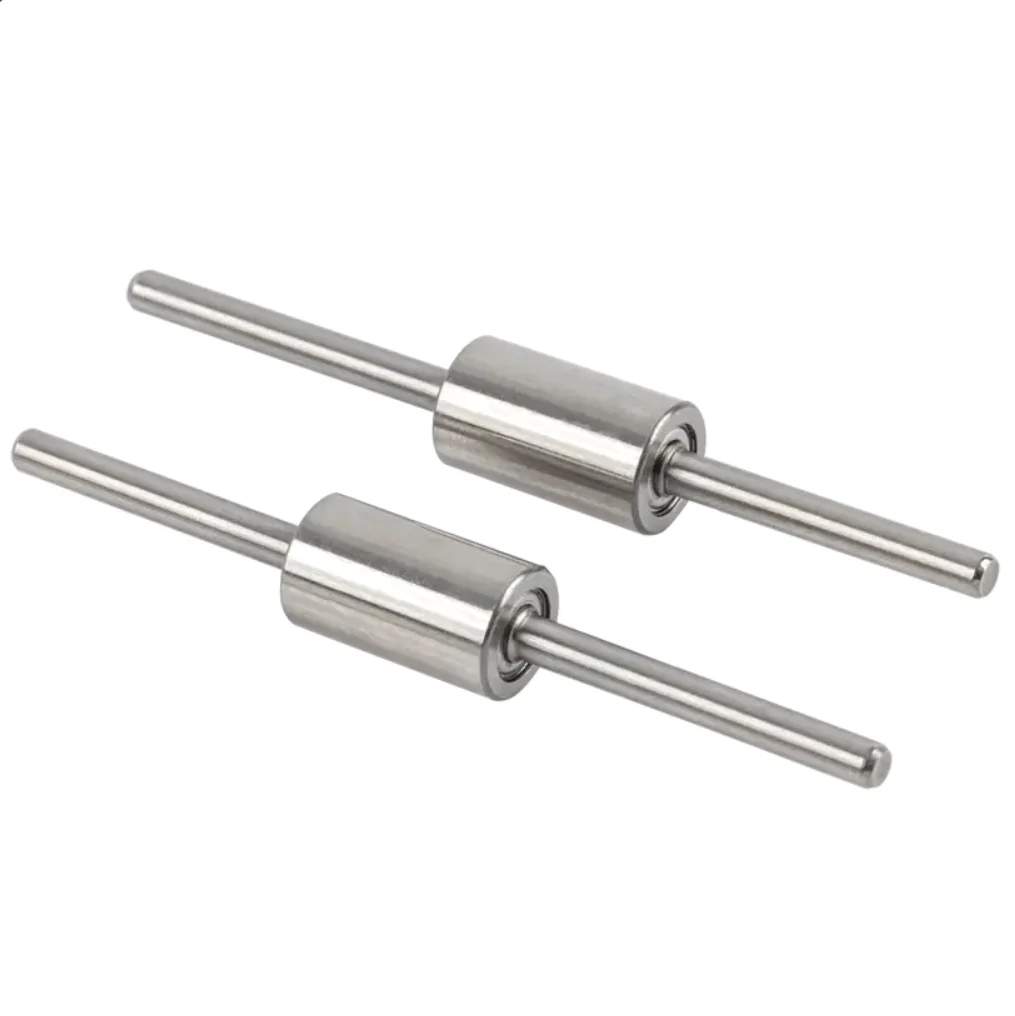

Double Cantilever Integrated Bearing | LT-52-MD841G | ∅4.2 | 4.2 | 4 | 41.7 | 548 | 173 | 130K |
LT-52-FJ845CT | 42 | 4 | 44.5 | 548 | 173 | 130K | ||
LT-65-FJ1343 | ∅5 | 13 | 5 | 42.5 | 829 | 274 | 130K | |
LT-65-MD1345 | 13 | 5 | 45 | 829 | 274 | 130K | ||
LT-76-LK1351/11.5 | ∅5*∅6.1 | 13 | 5 | 51.5 | 961 | 348 | 130K | |
LT-76-LK1360 | 13 | 5 | 60 | 961 | 348 | 130K | ||
LT-76-LK1363 | 13 | 5 | 63.5 | 961 | 348 | 130K | ||
|
|
|
|
|
|
|
|
|
Single End Integrated Bearing | LT-RC1725 | ∅8.5*∅8∅6 | 17 | 5.9 | 26.2 | 1781 | 725 | 30K |
17 | 5.9 |
| 1606 | 715 | ||||
|
|
|
|
|
|
|
| |
LT-RC1725GEN3 | ∅10.3*∅8∅6 | 17 | 5.9 | 26.2 | 1606 | 715 | 30K | |
17 | 5.9 |
| 1606 | 715 | ||||
|
|
|
|
|
|
|
| |
LT-6-DM1352GEN2 | 13 | 18 | 51.7 | 974 | 438 | 180K | ||
