Customizable Deep Groove Ball Bearing

Deep groove ball bearing is the most typical form in rolling bearing. It can bear radial load and two-way axial load. Featuring small friction and low noise, it is suitable for working environments of high speed and low vibration; it is the most widely used of all the bearings.
The single row deep groove ball bearings professionally produced by zhonglun are available in open, shielded or rubber-sealed designs. There are various types of cages such as nylon cage, iron cage, PEEK cage, etc. A number of greases are provided in accordance with different working conditions.
Some of the deep groove ball bearing designations, parameters and designs are listed in the bearing catalogue.

manager@wxlongar.com

Message

Customizable Ultra-high Speed Integrated Bearing

Customizable Deep Groove Ball Bearings

Product details

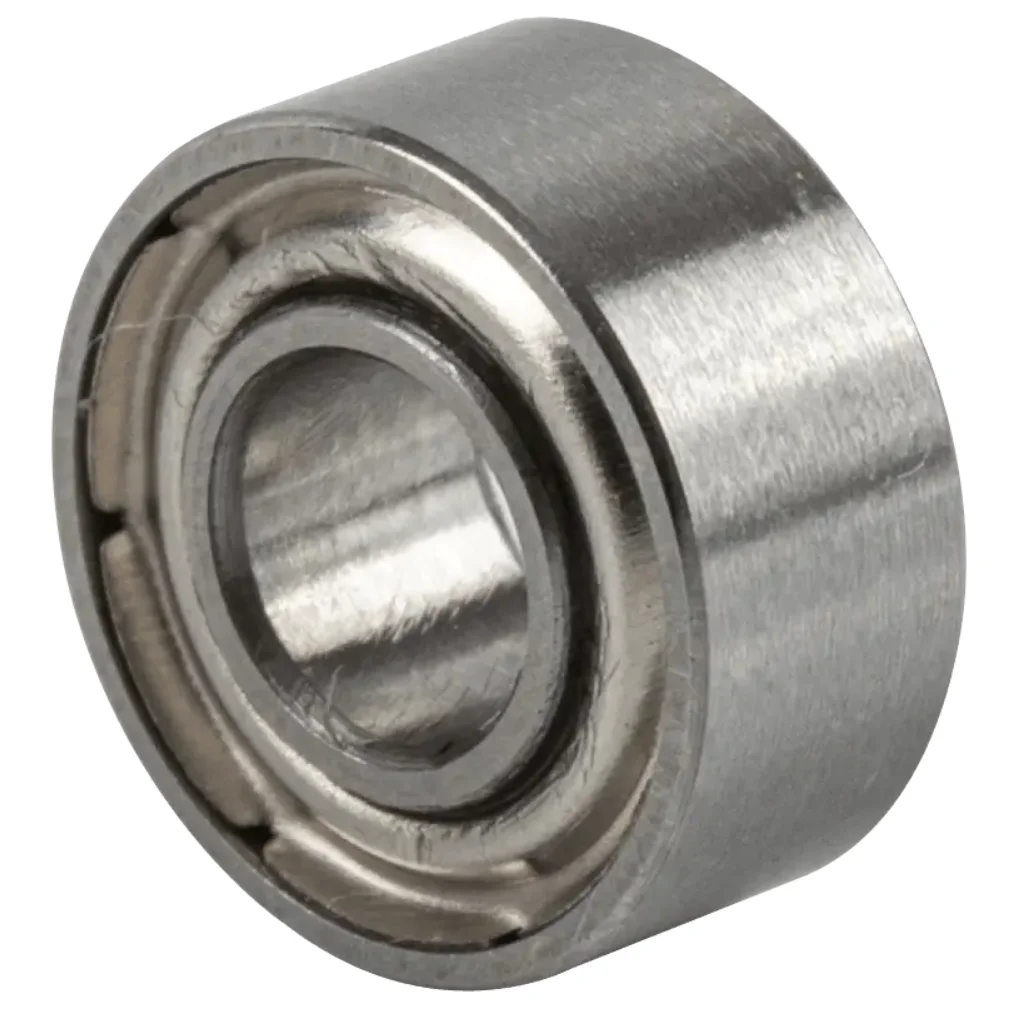

Miniature deep groove ball bearing

Deep Groove Ball Bearing

Miniature Groove Ball Bearing List
Designation			Dimensions(mm)					Rated load (N)		Limiting speed (rpm)
Open	Shield	Seal	d	D	B	B1	rsmin.	Cr	Cor	Grease	Oil
693	693-ZZ	693-2RS		8	3	4	0.15	560	179	60000	67000
603	603-ZZ	603-2RS	3	9	3	5	0.15	570	187	56000	67000
623	623-ZZ	623-2RS	3	10	4	4	0.15	630	218	50000	60000
684	684-ZZ	684-2RS	4	9	2.5	4	0.1	640	225	53000	63000
694	694-ZZ	694-2RS		11	4	4	0.15	960	345	48000	56000
604	604-ZZ	604-2RS		12	4	4	0.2	960	345	48000	56000
624	624-ZZ	624-2RS		13	5	5	0.2	1300	485	40000	48000
634	634-ZZ	634-2RS		16	5	5	0.3	1730	670	36000	43000
685	685-ZZ	685-2RS	5	11	3	5	0.15	715	281	45000	53000
695	695-ZZ	695-2RS		13	4	4	0.2	1080	430	43000	50000
605	605-ZZ	605-2RS		14	5	5	0.2	1330	505	40000	50000
625	625-ZZ	625-2RS		16	5	5	0.3	1730	670	36000	43000
635	635-ZZ	635-2RS		19	6	6	0.3	2620	1060	32000	40000
686	686-ZZ	686-2RS	6	13	3.5	5	0.15	1080	440	40000	50000
696	696-ZZ	696-2RS		15	5	5	0.2	1730	670	40000	45000
606	606-ZZ	606-2RS		17	6	6	0.3	2260	835	38000	45000
626	626-ZZ	626-2RS		19	6	6	0.3	2620	1060	32000	40000
636	636-Z2	636-2RS		22	7	7	0.3	3300	1370	30000	36000
687	687-ZZ	687-2RS	7	14	3.5	5	0.15	1170	510	40000	45000
697	697-ZZ	697-2RS		17	5	5	0.3	1610	710	36000	43000
607	607-ZZ	607-2RS		19	6	6	0.3	2620	1060	36000	43000
627	627-ZZ	627-2RS		22	7	7	0.3	3300	1370	30000	36000
688	688-ZZ	688-2RS	8	16	4	5	0.2	1260	590	36000	34000
698	698-ZZ	698-2RS		19	6	6	0.3	2620	1060	36000	34000
608	608-ZZ	608-2RS		22	7	7	0.3	3300	1370	34000	40000
628	628-ZZ	628-2RS		24	8	8	0.3	3350	1430	28000	34000
699	699-ZZ	699-2RS	9	20	6	6	0.3	1720	840	24000	40000
609	609-ZZ	609-2RS		24	7	7	0.3	3350	1430	22000	38000
629	629-ZZ	629-2RS		26	8	8	0.3	4550	1970	17000	34000

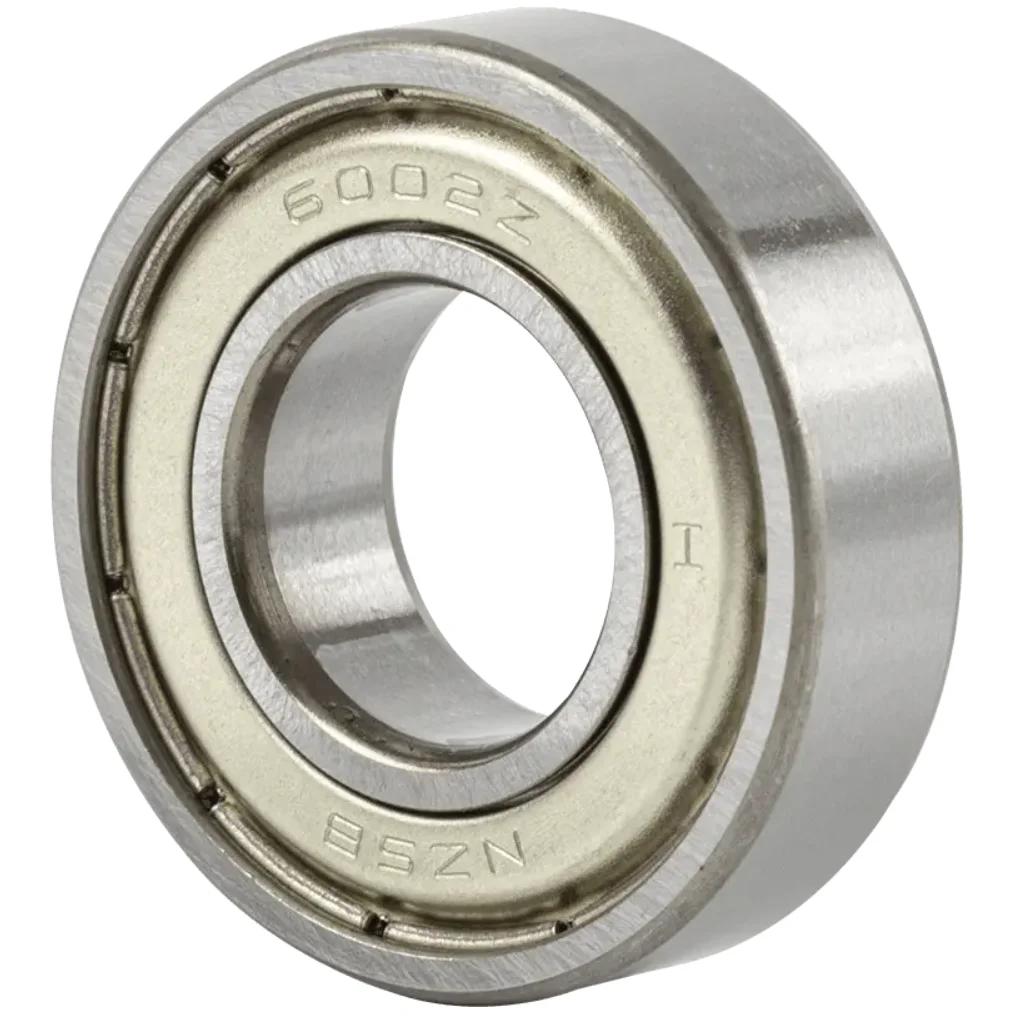

Small deep groove ball bearing

Deep Groove Ball Bearing

Small Deep Groove Ball Bearing List
Designation			Dimensions(mm)				Rated load (N)		Limiting speed (rpm)
Open	Shield	Seal	d	D	B	rsmin.	Cr	Cor	Grease ZZ	Grease 2RS	Oil
6800	6800-ZZ	6800-2RS	10	19	5	0.3	1720	840	34000	24000	40000
6900	6900-ZZ	6900-2RS		22	6	0.3	2700	1270	32000	22000	38000
6000	6000-ZZ	6000-2RS		26	8	0.3	4550	1970	30000	22000	36000
6200	6200-ZZ	6200-2RS		30	9	0.3	5100	2390	24000	18000	30000
6300	6300-ZZ	6300-2RS		35	11	0.6	8100	3450	22000	17000	26000
6801	6801-ZZ	6801-2RS	12	21	5	0.3	1920	1040	24000	20000	38000
6901	6901-ZZ	6901-2RS		24	6	0.3	2890	1460	22000	20000	36000
6001	6001-ZZ	6001-2RS		28	8	0.3	5100	2370	28000	18000	32000
6201	6201-ZZ	6201-2RS		32	10	06	6800	3050	22000	17000	28000
6301	6901-ZZ	6301-2RS		37	12	1	9700	4200	20000	16000	24000
6802	6802-ZZ	6802-2RS	75	24	5	0.3	2070	1260	28000	17000	34000
6902	6902-ZZ	6902-2RS		28	7	0.3	4350	2260	26000	17000	30000
6002	6002-ZZ	6002-2RS		32	9	0.3	5600	2830	24000	15000	28000
6202	6202-ZZ	6202-2RS		35	11	0.6	7650	3750	20000	14000	24000
6302	6302-ZZ	6302-2RS		42	13	1	11400	S450	17000	13000	20000
6803	6803-ZZ	6803-2RS	17	26	5	0.3	2630	1570	26000	15000	30000
6903	6903-ZZ	6903-2RS		30	7	0.3	4600	2550	24000	15000	28000
6003	6003-ZZ	6003-2RS		35	10	0.3	6000	3250	22000	13000	26000
6203	6203-ZZ	6203-2RS		40	12	0.6	9550	4800	17000	12000	20000
6303	6303-ZZ	6303-2RS		47	14	1	13600	6650	75000	11000	18000
6804	6804-ZZ	6804-2RS	20	32	7	0.3	4000	2470	22000	13000	26000
6904	6904-ZZ	6904-2RS		37	9	0.3	64000	3700	79000	12000	22000
6004	6004-ZZ	6004-2RS		42	12	0.6	9400	5000	18000	11000	20000
6204	6204-ZZ	6204-2RS		47	14	1	12800	6600	79000	11000	18000
6304	6304-ZZ	6304-2RS		52	15	1.1	15900	7900	14000	10000	17000
6805	6805-ZZ	6805-2RS	25	37	7	0.3	4500	3750	18000	10000	22000
6905	6905-ZZ	6905-2RS		42	9	0.3	7050	4550	16000	10000	19000
600s	6005-ZZ	6005-2RS		47	12	0.6	10000	5850	79000	9900	18000
6205	6205-ZZ	6205-2RS		52	15	1	14000	7850	13000	9000	15000
6806	6806-ZZ	6806-2RS	30	42	7	0.3	4700	3650	75000	9000	18000
6906	6906-ZZ	6906-2RS		47	9	0.3	7250	5000	14000	8500	17000
6006	6006-ZZ	6006-2RS		55	13	1	13200	8300	13000	8000	17000
6807	6807-ZZ	6807-2RS	35	47	7	0.3	4900	4000	14000	7500	16000
6907	6907-ZZ	6907-2RS	35	55	10	0.6	10600	7250	12000	7000	17000
6808	6808-ZZ	6808-2RS	40	52	7	0.3	6350	5550	12000	6700	14000

Medium and small-sized deep groove ball bearing

Deep Groove Ball Bearing

Medium and Small Deep Groove Ball Bearing List
Designation			Dimensions(mm)					Rated load(N)		Limiting speed(rpm)
Open	Shield	Seal	d	D	B	rsmin.		Cr	Cor	Grease ZZ	Grease 2RS	Oil
6800	6800-ZZ	6800 2RS	10	19	5		0.3	1720	840	34000	24000	40000
6900	6900-ZZ	6900 2RS		22	6		0.3	2700	1270	32000	2x000	18000
6000	6000-ZZ	6000 2RS		26	8		0.3	4550	1970	30000	22000	36000
6000	6200-ZZ	6700 2RS		30	9		0.3	5100	2390	24000	18000	10000
6300	6300-ZZ	6300 2RS		35	11		0.6	8100	3450	22000	17000	26000
6801	6801-ZZ	6801 2RS	12	21	5		0.3	1920	1040	24000	20000	18000
6901	6901-ZZ	6901 2RS		24	6		0.3	2890	1460	22000	20000	36000
6001	6001-ZZ	6001 2RS		28	8		0.3	5100	2370	28000	15000	10000
6201	6201-ZZ	6201 2RS		32	10		0.6	6800	3050	22000	17000	28000
6301	6301-ZZ	6301 2RS		37	12		1	9700	4700	x000	15000	24000
6800	6802-ZZ	6802 2RS	15	24	5		0.3	2070	1260	28000	17000	34000
6000	6902-ZZ	6902 2RS		28	7		0.3	4350	2260	26000	17000	30000
6002	6002-ZZ	6002 2RS		32	9		0.3	5600	2830	24000	15000	28000
6000	6202-ZZ	6202 2RS		15	11		0.6	7650	3750	20000	14000	24000
6300	6302-ZZ	6302 2RS		42	13		1	11400	5450	17000	13000	20000
6803	6803-ZZ	6803 2RS	17	26	5		0.3	2630	1570	26000	15000	30000
6903	6903-ZZ	6903 2RS		30	7		0.3	4600	2550	24000	15000	28000
6003	6003-ZZ	6003 2RS		35	10		0.3	6000	3250	22000	1000	26000
6203	6203-ZZ	6203 2RS		40	12		0.6	9550	4500	17000	12000	20000
6303	6303-ZZ	6303 2RS		47	14		1	13600	6650	15000	1000	18000
6804	6804-ZZ	6804 2RS	20	32	7		0.3	4000	2470	22000	13000	26000
6904	6904-ZZ	6904 2RS		37	9		0.3	64000	3700	19000	12000	20000
6004	6004-ZZ	6004 2RS		42	12		0.6	9400	5000	18000	0000	20000
6004	6204-ZZ	6704 2RS		47	14		1	12800	6600	15000	0000	18000
6304	6304-ZZ	6304 2RS		52	15		11	15900	7000	14000	10000	17000
6805	6805-ZZ	6805 2RS	25	37	7		0.3	4500	3150	18000	10000	22000
6905	6705-ZZ	6905 2RS		42	9		0.3	7050	4550	16000	10000	1000
6005	6005-ZZ	6005 2RS		47	12		0.6	10000	5850	15000	9500	15000
6205	6205-ZZ	6205 2RS		52	15		1	14000	7850	13000	9000	15000
6305	6305-ZZ	6305 2RS		62	17		11	20600	11200	11000	8000	13000
6806	6806-ZZ	6806 2RS	30	42	7		0.3	4700	3650	15000	9000	18000
6906	6705-ZZ	6906 2RS		47	9		0.3	7250	5000	14000	8500	17000
6006	6006-ZZ	6006 2RS		55	13		1	13200	8300	13000	8000	15000
6206	6206-ZZ	6206 2RS		62	16		1	19500	11300	11000	7500	13000
6306	6305-ZZ	6306 2RS		72	19		11	26700	15000	9500	6700	12000
6807	6807-ZZ	6807 2RS	35	47	7		0.3	4900	4100	14000	7500	15000
6907	6907-ZZ	6907 2RS		55	10		0.6	10600	7250	12000	75000	15000
6007	6007-ZZ	6007 2RS		62	14		1	16000	10300	1000	6700	13000
6207	6207-ZZ	6207 2RS		72	17		11	25700	15300	9500	6300	11000
6307	6307-ZZ	6307 2RS		80	21		15	33500	19000	8500	6000	10000
6808	6808-ZZ	6808 2RS	40	52	7		0.3	6350	5550	12000	6700	14000
6900	6908-ZZ	6908 2RS		62	1		0.6	13700	10000	1000	6300	13000
6008	6008-ZZ	6008 2RS		68	15		1	16800	11500	10000	6000	12000
6000	6208-ZZ	6206 2RS		80	18		11	2900	17900	6500	5600	10000
6308	6308-ZZ	6308 2RS		90	23		15	40500	24000	7500	5300	9000
